AV Matrix HDMI - SDI Converter with Powersupply

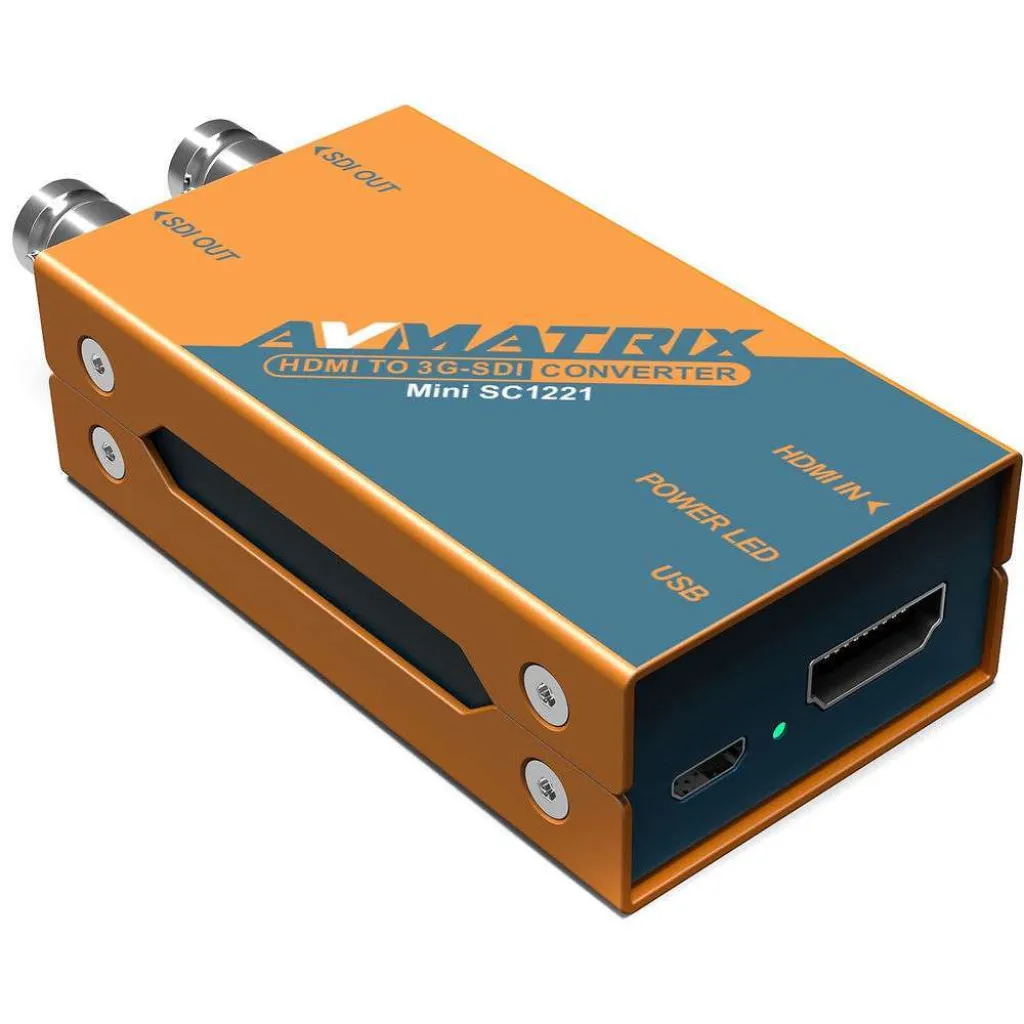

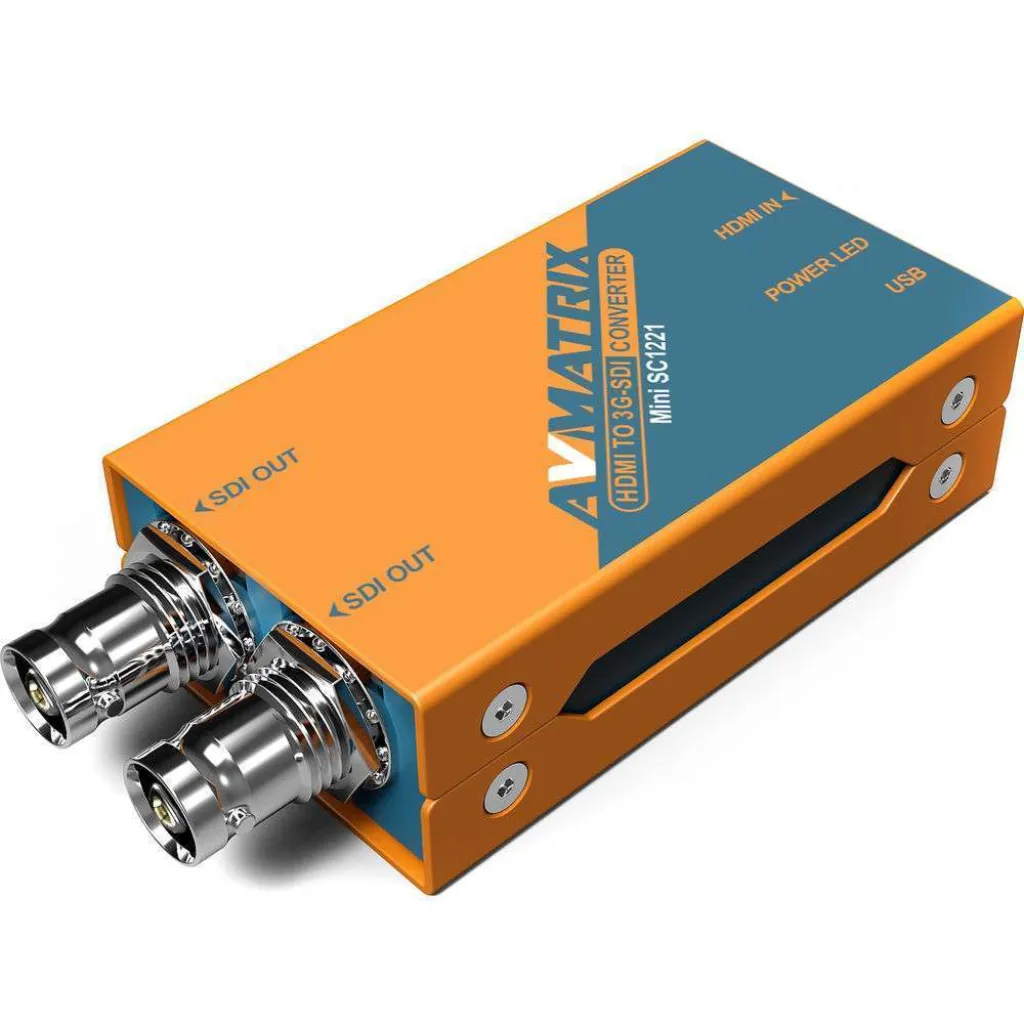

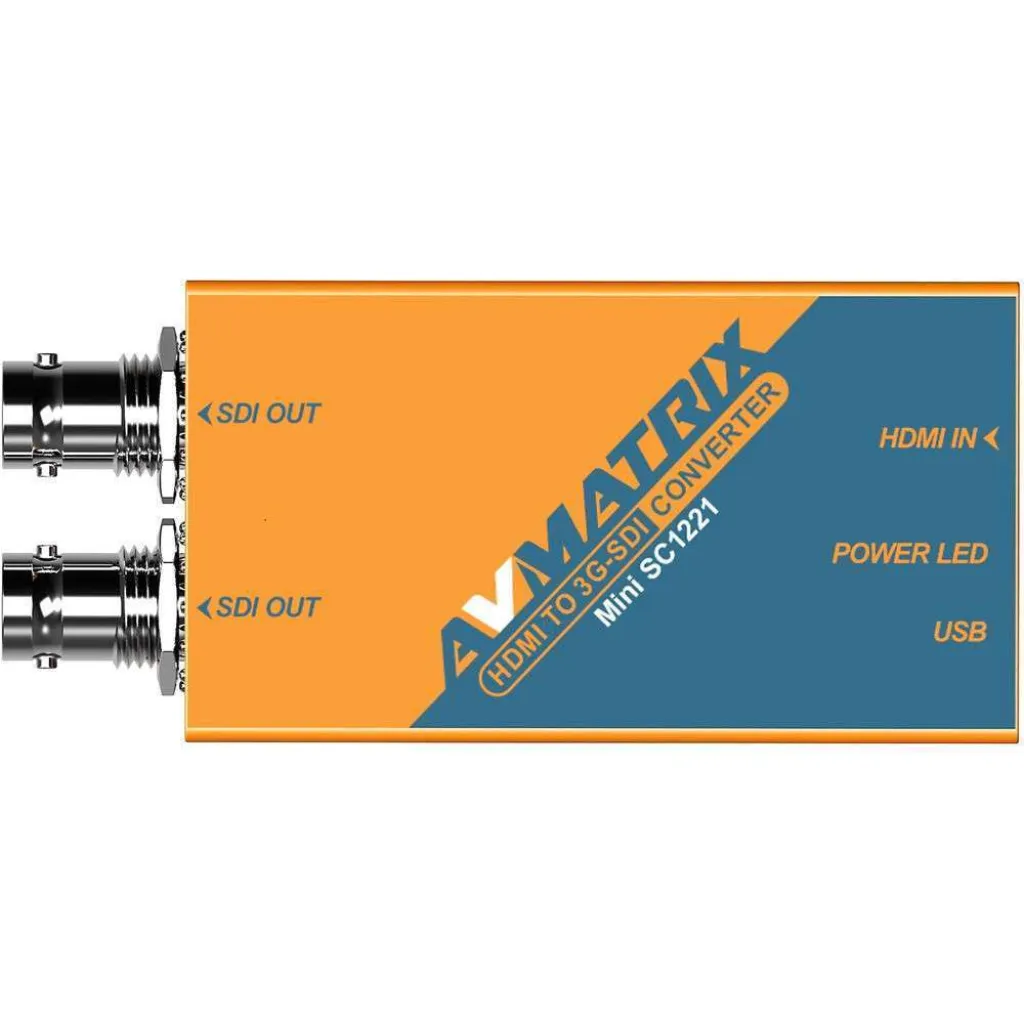

The AVMatrix Mini is an ultra-compact HDMI to dual 3G-SDI signal converter in a robust metal housing.



The Mini SC1221 features a full-size HDMI input and two 3G-SDI outputs and supports up to 1080p60 resolution. EMC compliant, the Mini SC1221 can reliably be used 24 hours a day, 7 days a week without interruptions, lag, or delay. A mounting bracket is also included that easily attaches/detaches and allows for convenient mounting indoors or outdoors.



The Mini SC1221 has a USB port for power and an LED indicator that confirms power status. An AC adapter is supplied that connects into the micro-USB port to provide continuous power, but you can also connect it to other sources over a USB cable (included). For example, you can connect it to a laptop or a power bank. A 10,000mAh power bank will run the converter for approximately 24 hours.



The converter is also capable of working in a wide temperature range of -4 to 140°F.



Key Features

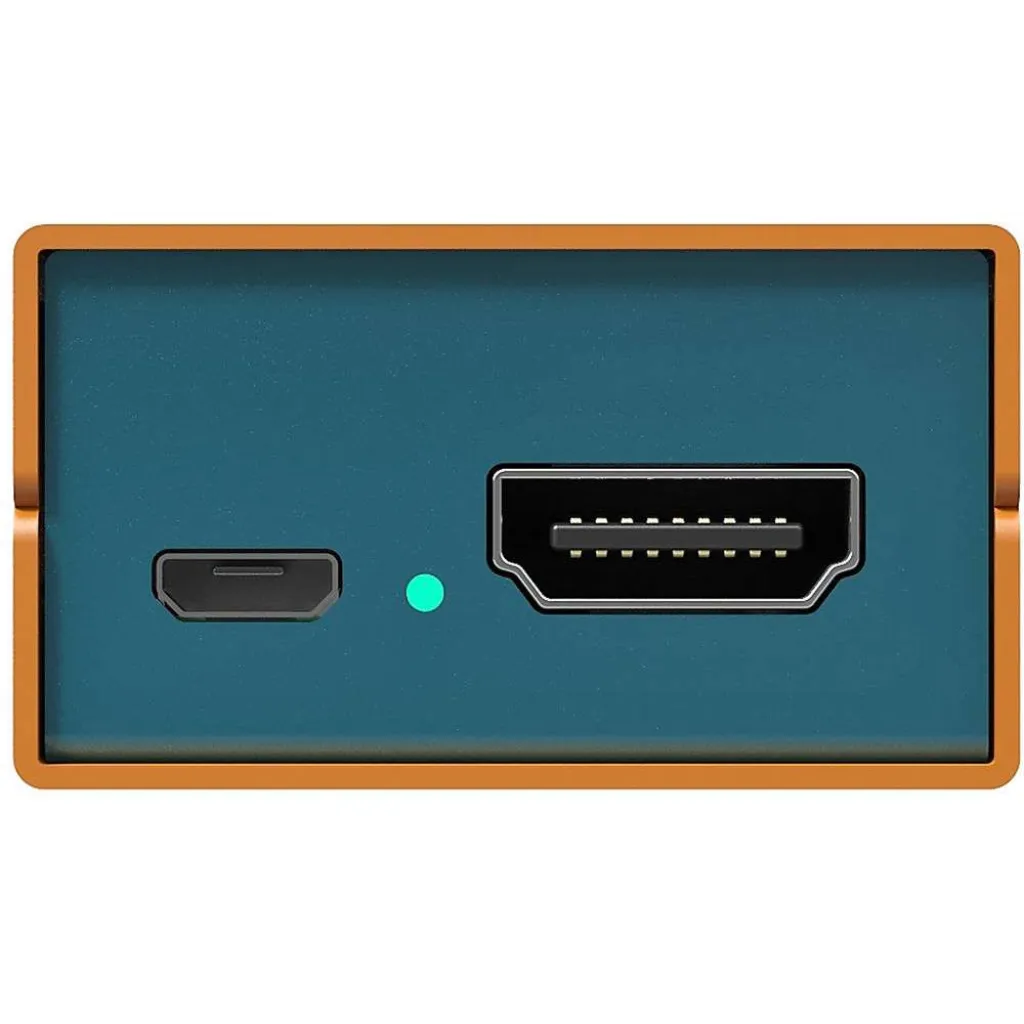

HDMI Type-A input

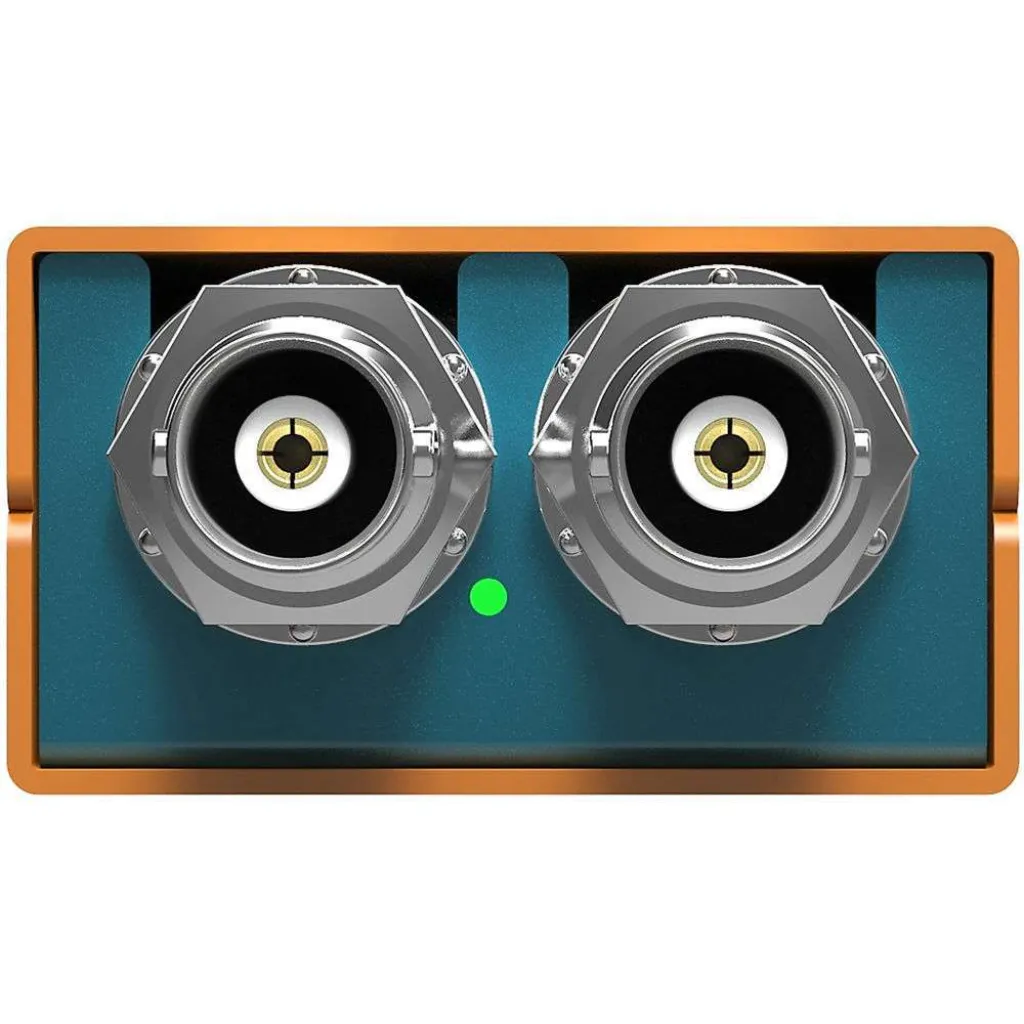

2 x 3G/HD/SD-SDI outputs

Supports up to 1080p60 resolution

EMC compliant and works 24/7 without lag/delay

Micro-USB port for power

LED power indicator

AC power adapter included

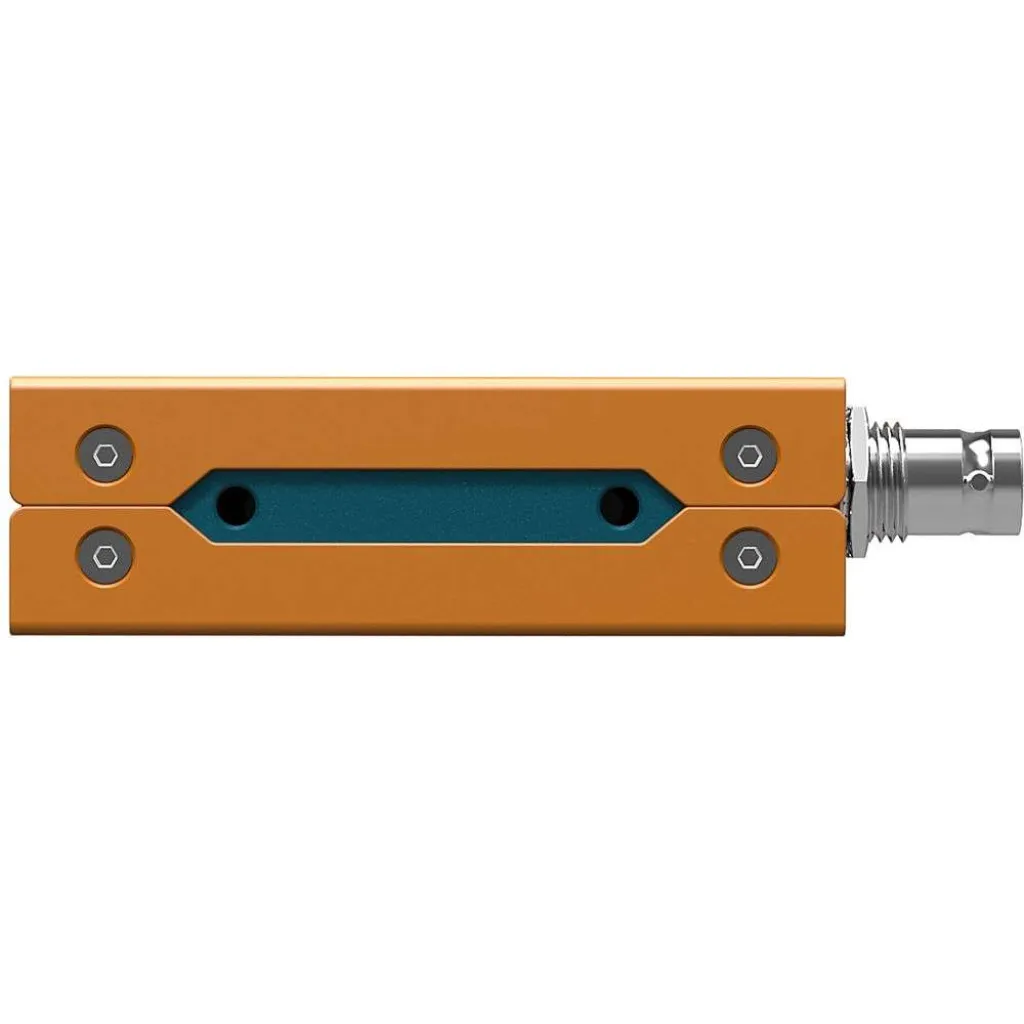

Mounting bracket included
