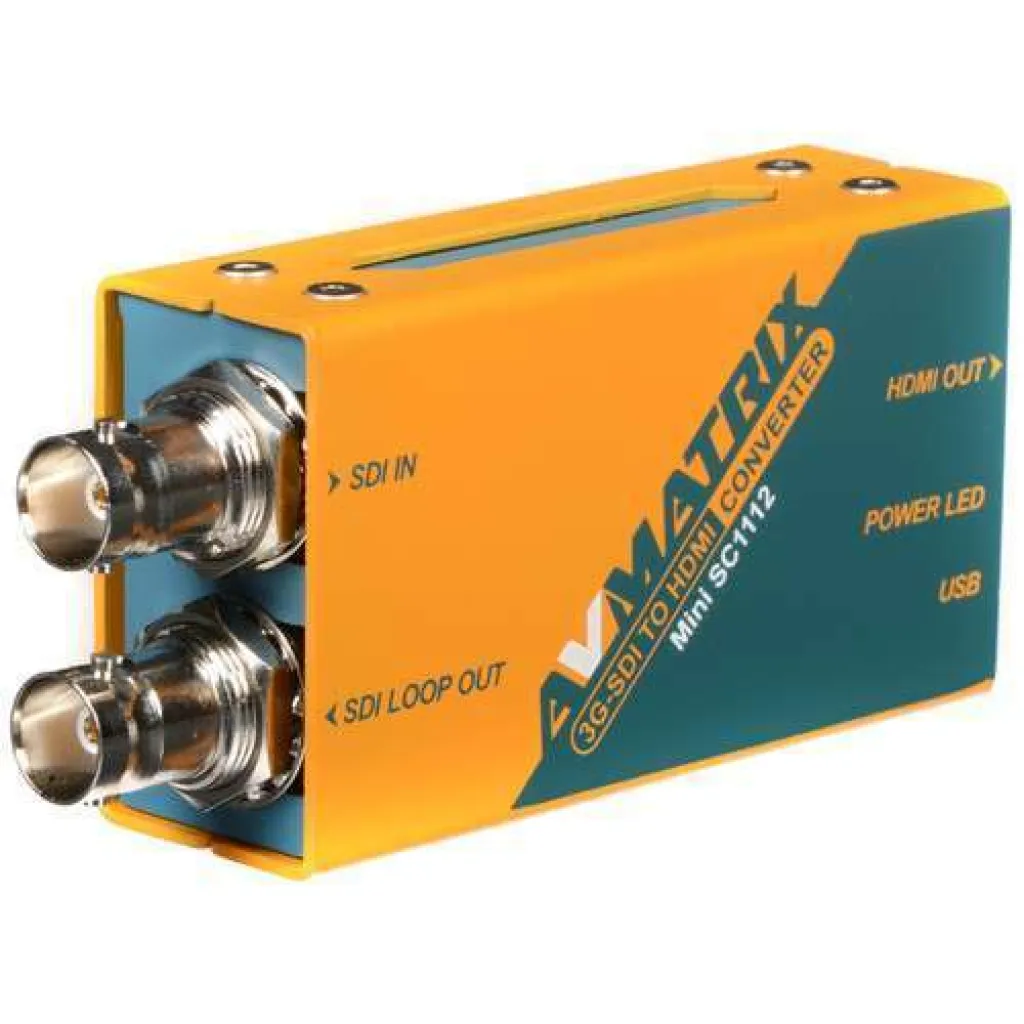

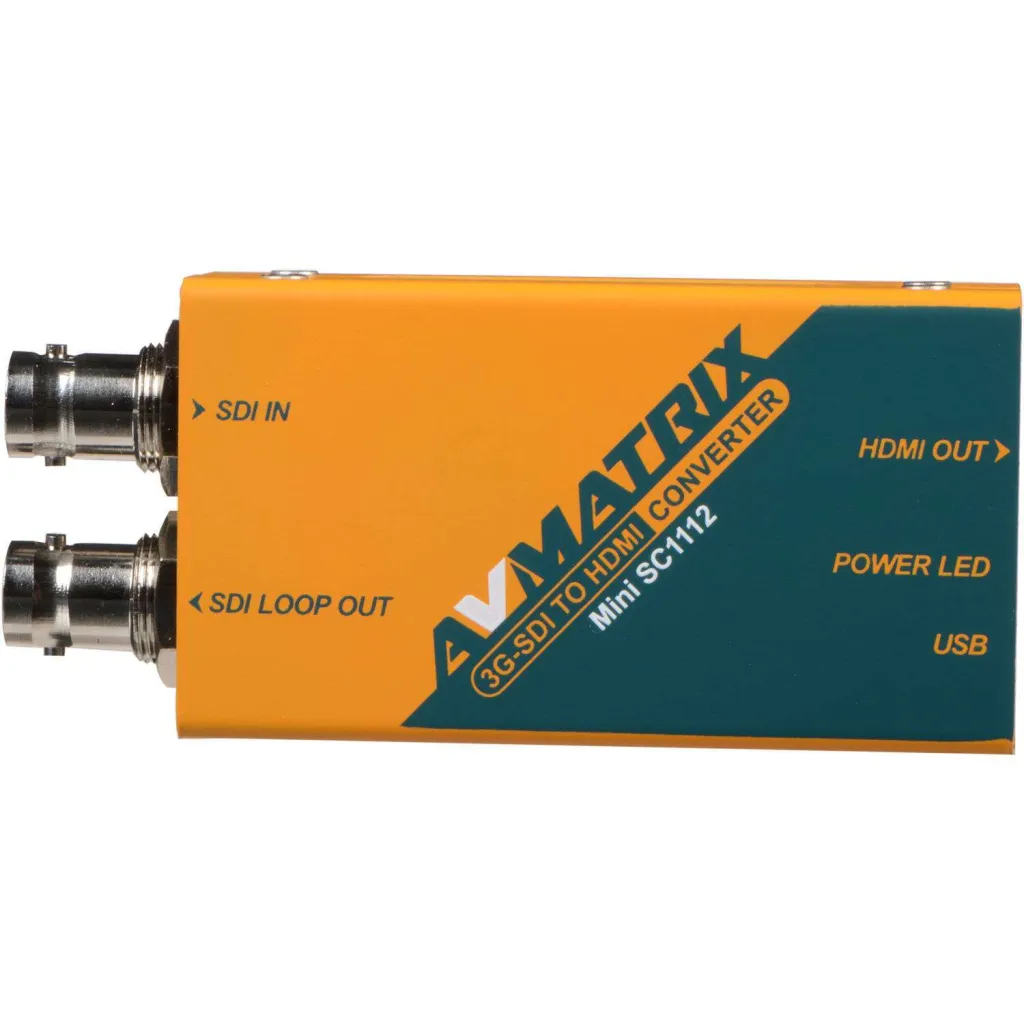

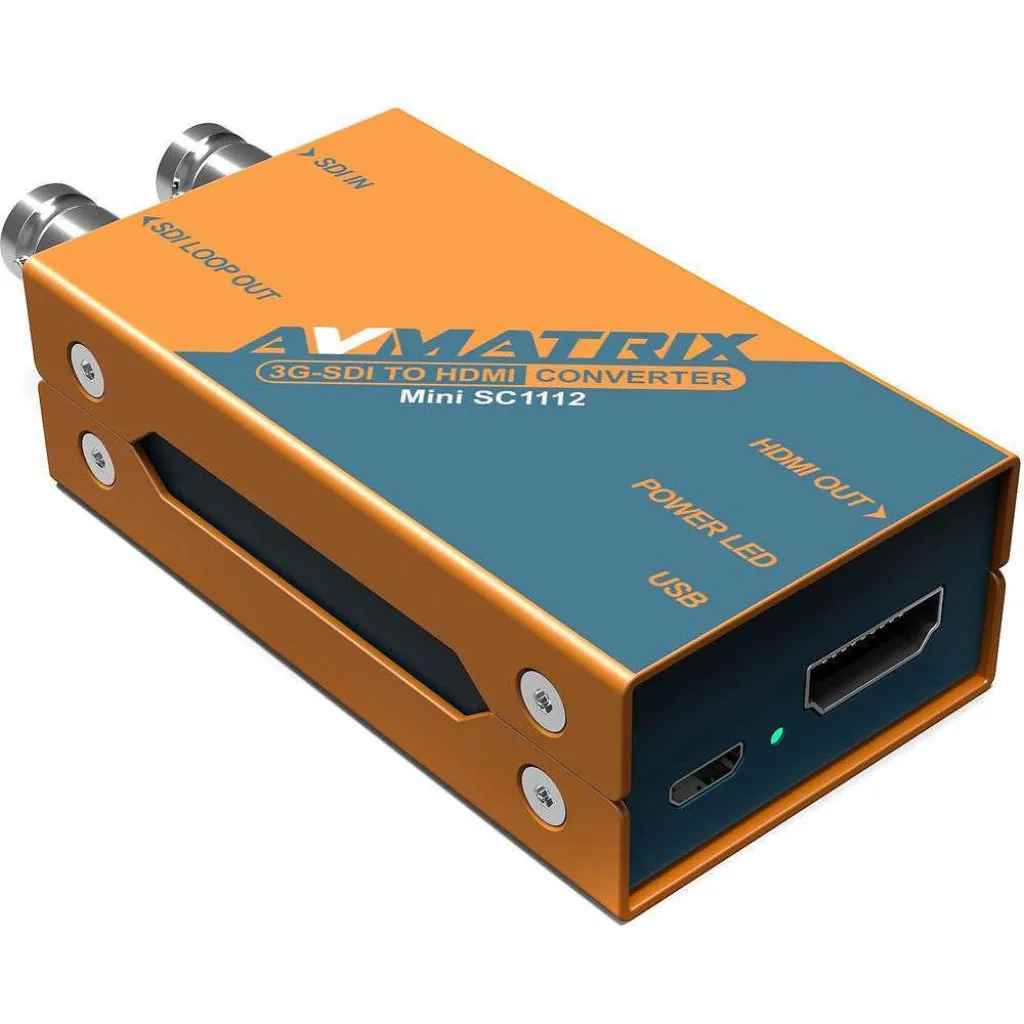

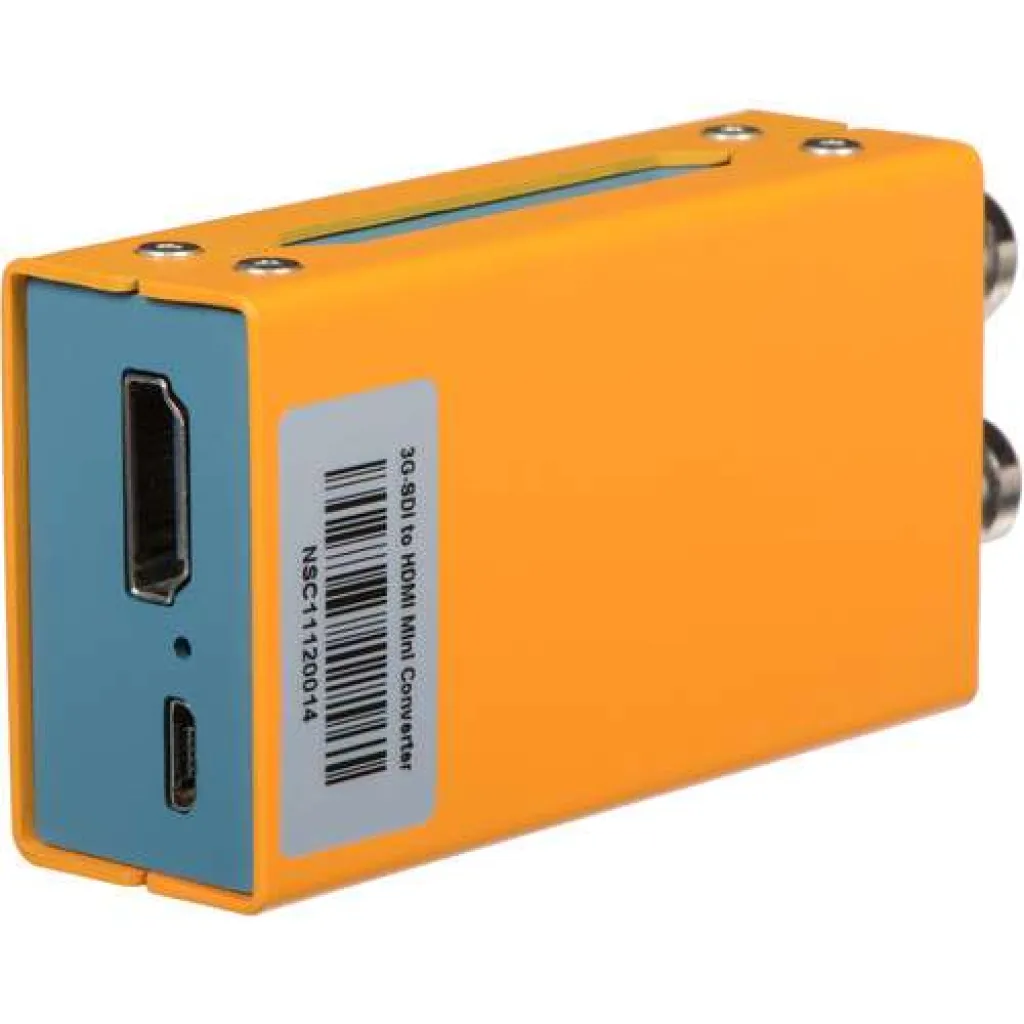

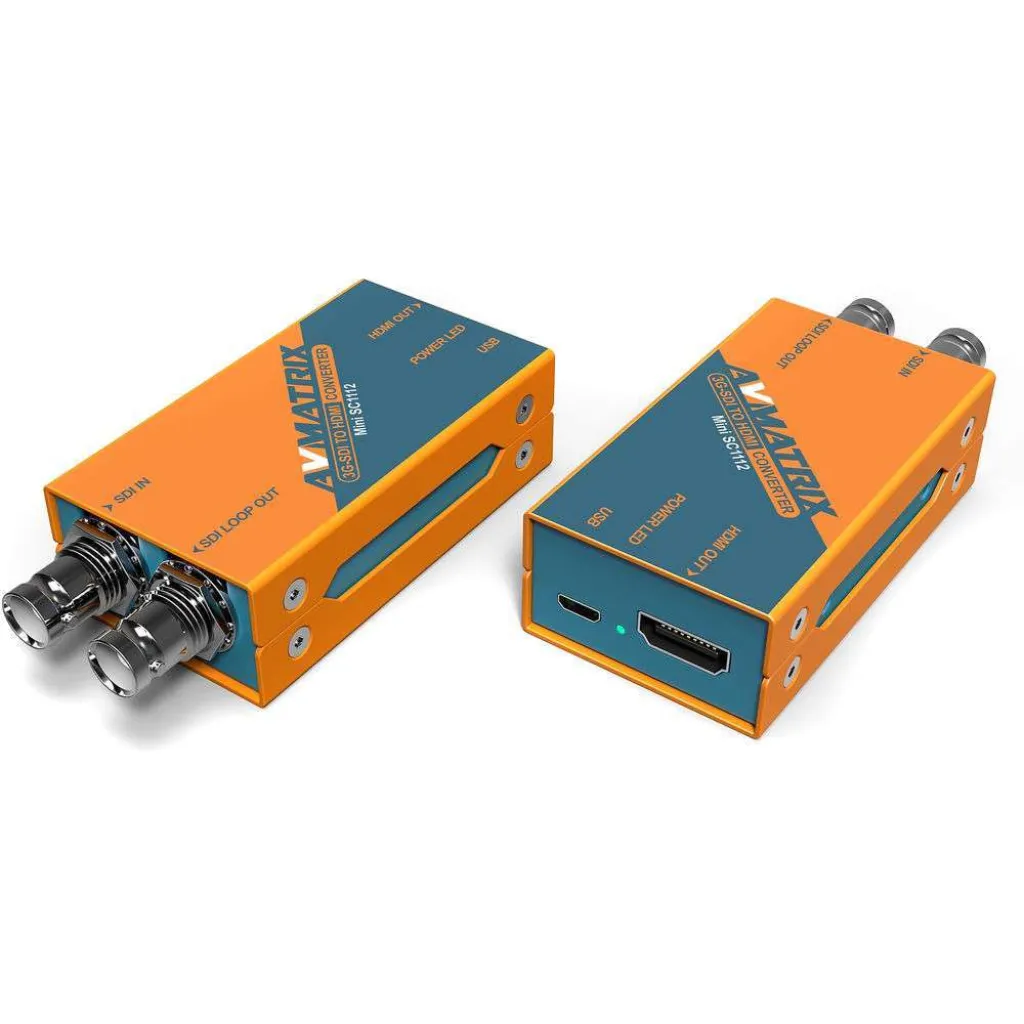

AV Matrix SDI - HDMI Converter with Powersupply

The AVMatrix Mini SC1112 is an ultra-compact SDI to HDMI signal converter in a robust metal housing.

The Mini SC1112 features a 3G-SDI input and full-size HDMI output, and an SDI loop out for monitoring.

It supports up to 1080p60 resolution and auto-selects between 3G, HD, and SD on input.

EMC compliant, the Mini SC1112 can reliably be used 24 hours a day, 7 days a week without interruptions, lag, or delay.

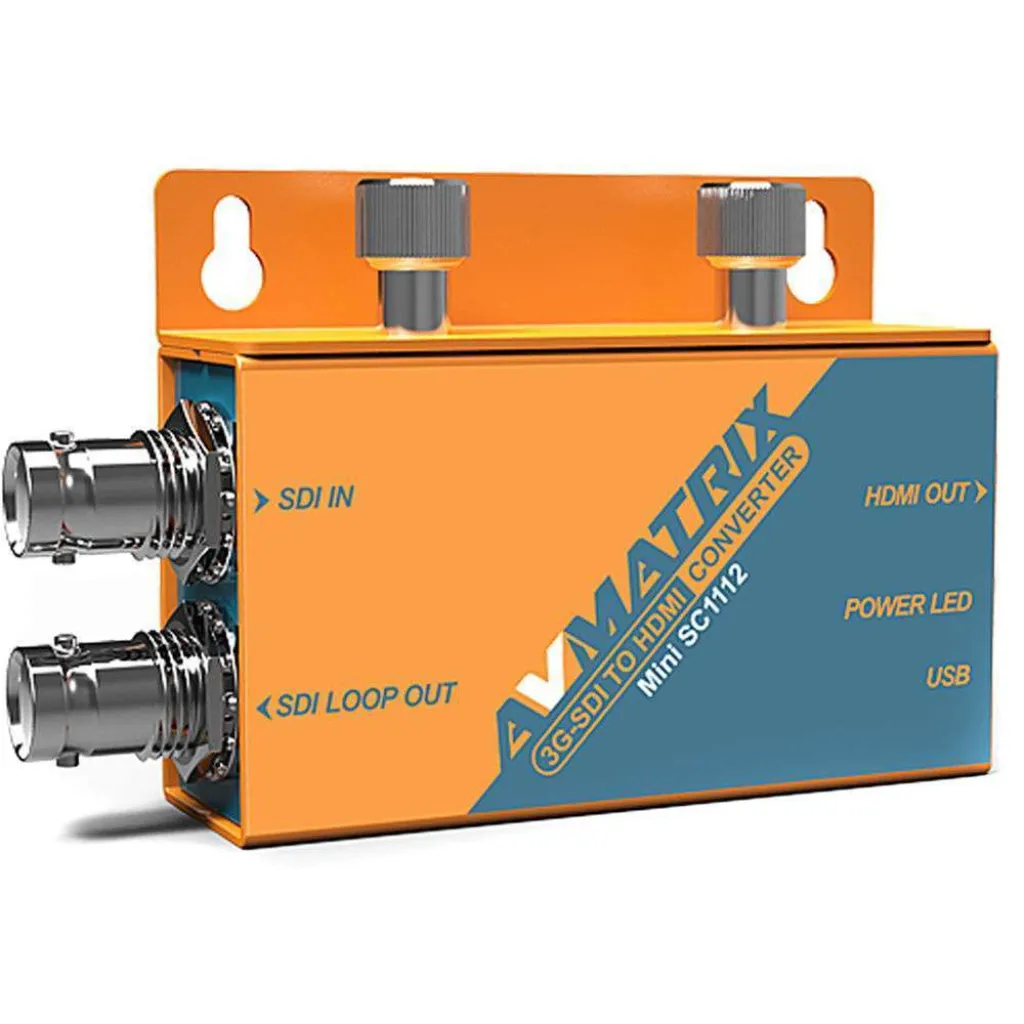

A mounting bracket is also included that easily attaches/detaches and allows for convenient mounting indoors or outdoors.



The Mini SC1112 has a USB port for power and an LED indicator that confirms power status.

An AC adapter is supplied that connects into the micro-USB port to provide continuous power, but you can also connect it to other sources over a USB cable (included).

For example, you can connect it to a laptop or a power bank. A 10,000mAh power bank will run the converter for approximately 24 hours.



The converter is also capable of working in a wide temperature range of -4 to 140°F.



Key Features :

3G/HD/SD-SDI input (auto-selecting)

HDMI Type-A output

3G/HD/SD-SDI loop out

Supports up to 1080p60 resolution

EMC compliant and works 24/7 without lag/delay

Micro-USB port for power

LED power indicator

AC power adapter included

Mounting bracket included
