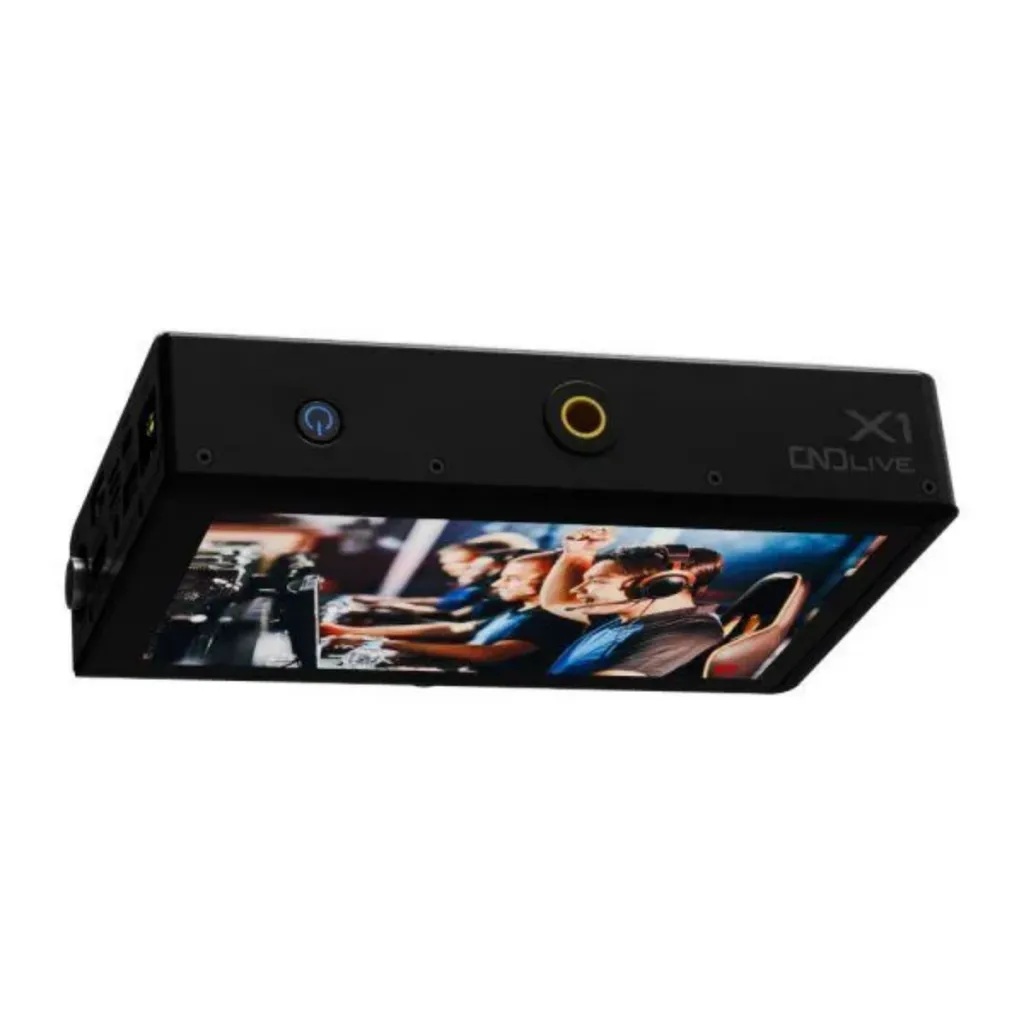

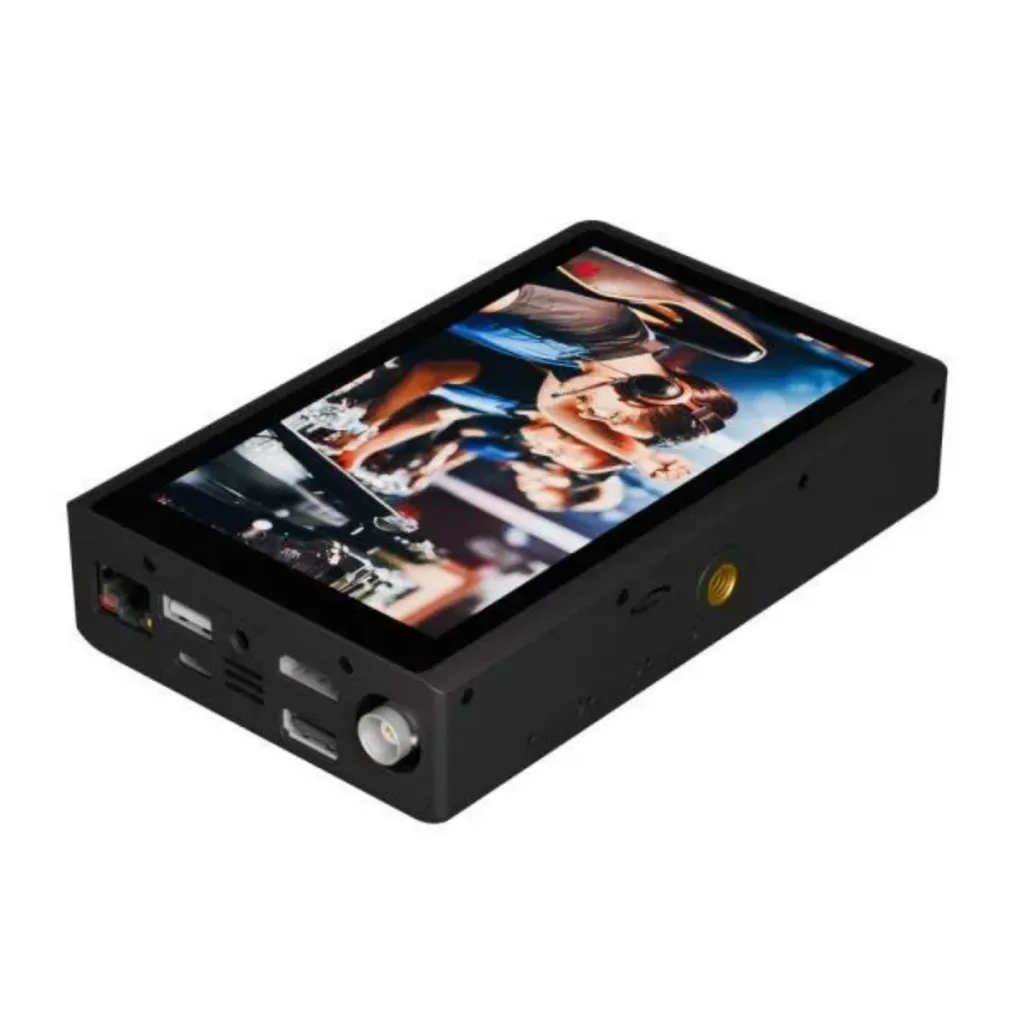

CNDLive X1 HDMI & SDI 4G Bonding Video Encoder and Monitor

The CNDLive X1 HDMI & SDI 4G Bonding Video Encoder and Monitor is a compact, all-in-one live streaming powerhouse designed for professionals who need reliable, high-quality video delivery from any location. With integrated bonding technology and dual 4K video input support, the X1 ensures stable, high-definition streaming over multiple 4G LTE connections, even in challenging network environments.



Whether you're a journalist on the move, a sports broadcaster in the field, or a content creator delivering live content to your online audience, the X1 offers unmatched portability, quality, and control. Its intuitive 5.5-inch touch-screen display allows you to monitor and manage your stream in real time, while its robust construction and lightweight design make it the perfect companion for mobile production.



Product Highlights

• Professional Dual Video Input: Supports both HDMI (up to 4Kp30) and 3G-SDI inputs for flexible camera integration.



• Powerful Bonding Capability: Stream via 3x 4G LTE SIMs, Wi-Fi 6, Gigabit Ethernet, and 2 USB modems for seamless internet redundancy.



• Built-In 5.5" LCD Monitor: High-resolution touchscreen display with touch-button control for real-time monitoring and setting adjustments.



• Next-Gen Encoding: Supports H.265/HEVC and H.264 encoding to maximize quality while minimizing bandwidth.



• Multiple Streaming Protocols: Compatible with RTMP(S), SRT, HLS, RTSP, and TS over UDP — plus optional NDI|HX 2.0 with hardware bonding server.



• Recording Functionality: Record your streams directly to a TF card or external USB in TS, MOV, or MP4 format.



• Free Bonding Server Access: Includes one year of free access to the CNDLive bonding server platform.



• Remote Control & Management: Manage your encoder using the CNDLive Manager web UI or optional hardware control panel.



Technical Specifications

Category Details Video Inputs 1x HDMI, 1x 3G-SDI Video Encoding H.265/HEVC, H.264 Audio Encoding AAC, G.711 Video Resolutions SDI: 1080p/i, 720p, 576i, 480i
HDMI: Up to 4Kp30, 1080p/i, 720p Simultaneous Bonding 3x Internal SIMs, 1x Wi-Fi 6, 1x Ethernet, 2x USB Modems IP Output Protocols RTMP, RTMPS, SRT, HLS, TS over UDP, RTSP (NDI Interfaces 2x USB 2.0, 1x GbE Ethernet, 1x Type-C (Power), 1x TF Slot Recording To TF Card or USB in TS, MOV, or MP4 format Display 5.5” LCD Touch Screen Battery 8.4V / 5000mAh Management Web UI and CNDLive Manager Dimensions 140 x 131 x 43.7mm (5.51″ x 5.15″ x 1.72″) Weight 476.5g (16.8 oz) Operating Temp. -10°C to 45°C



Application Scenarios

• Field Reporting & Journalism: Go live from remote or unstable network locations using 4G bonding and record simultaneously.



• Live Sports Broadcasting: Perfect for outdoor sports coverage with multiple input options and stable streaming.



• Worship Services & Events: Stream church events or community gatherings with minimal setup.



• Online Education & Training: Deliver professional-grade lectures and workshops live from anywhere.



• Government & Law Enforcement: Ideal for public communication or surveillance video streaming.



• Content Creation & Influencer Streaming: Connect with audiences on social platforms in high quality without relying on a studio.



Skywire Broadcast is proud to offer the CNDLive X1 HDMI & SDI 4G Bonding Encoder and Monitor as a versatile and rugged live streaming solution. Whether you're in the studio or in the field, the X1 brings reliability, control, and video excellence to your fingertips.
