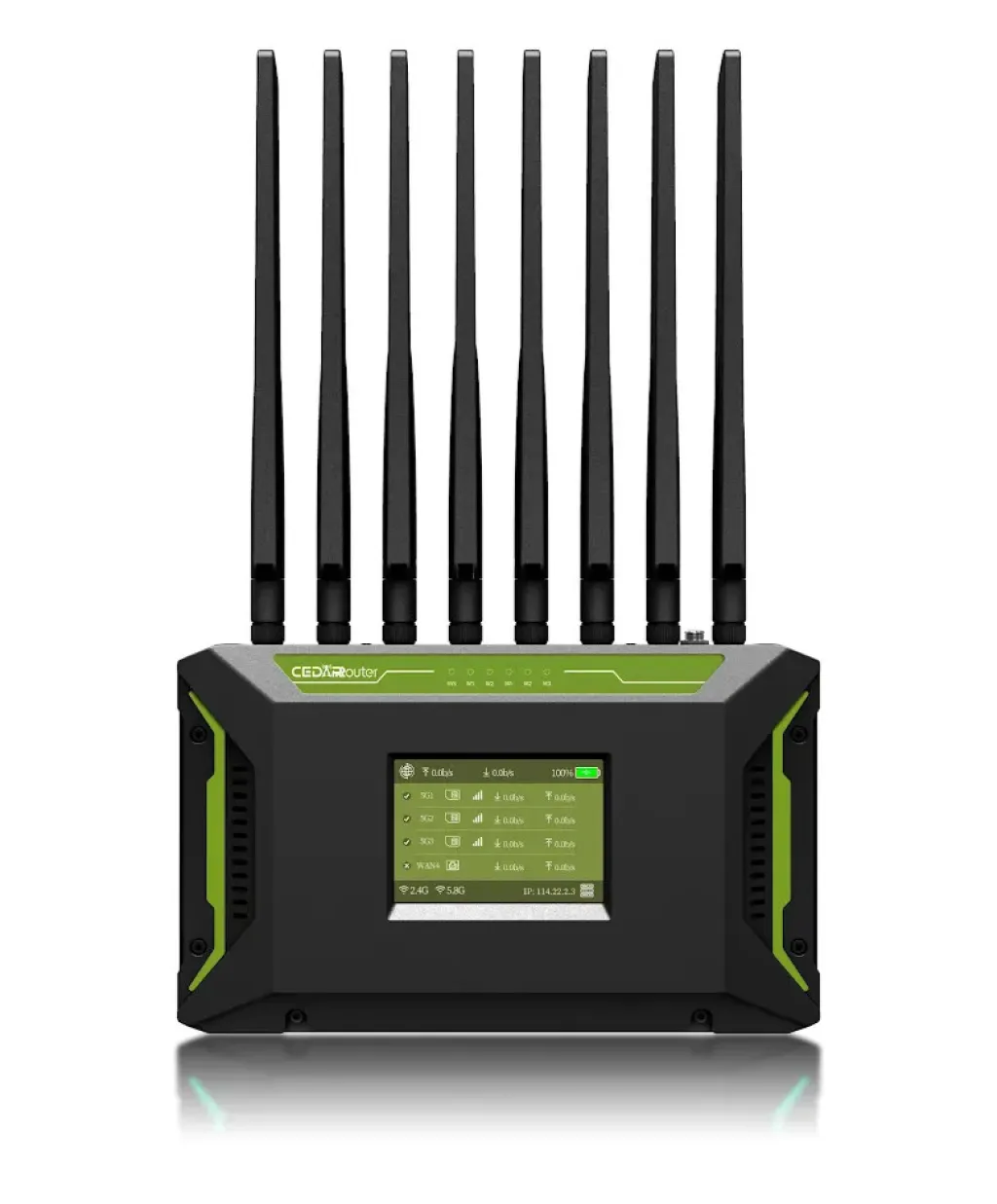

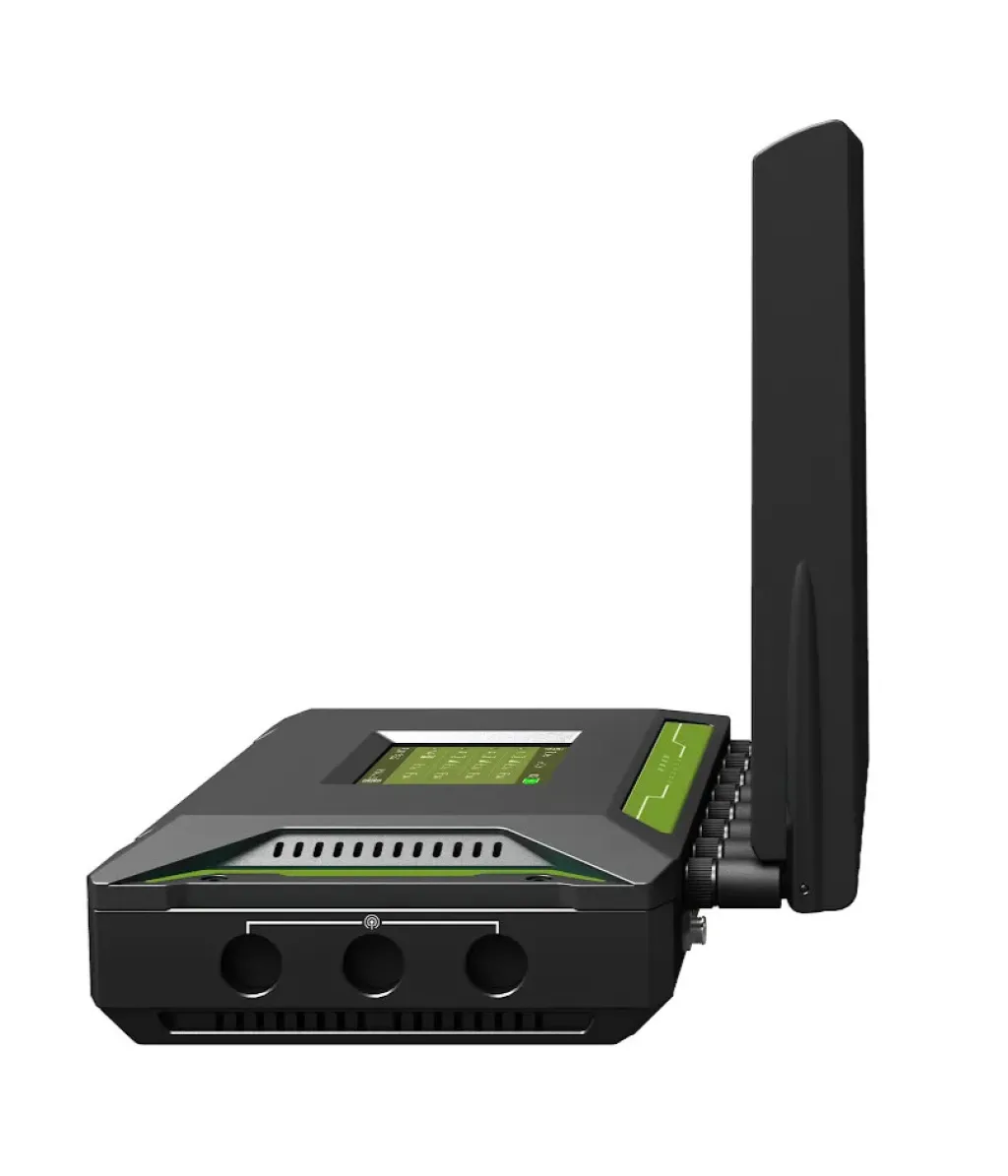

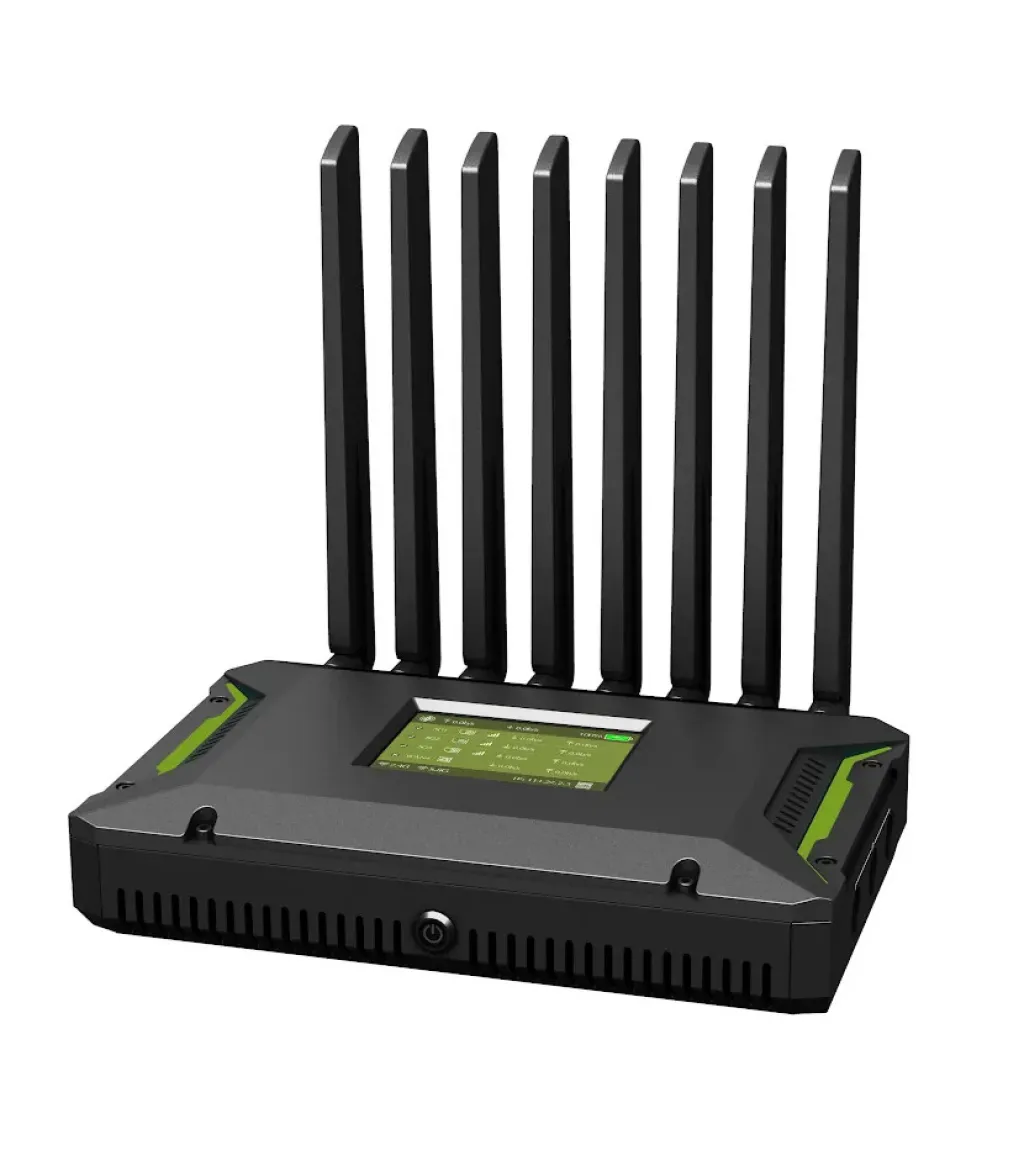

Mine Media Cedar Router C3 – 5G Network Bonding Router

The C3 5G Cellular Bonding Router is a high-performance, portable networking solution built for live broadcasting, remote production, mission-critical communication, and enterprise connectivity. Powered by Qualcomm processing, multi-SIM bonding, Wi-Fi 6, and a high-capacity battery, it delivers stable, high-speed, and redundant internet connectivity anytime, anywhere.

Key Features

• 5G + Dual 4G LTE Cellular Bonding for ultra-stable, high-bandwidth connectivity
• Multi-SIM Load Balancing & Failover for uninterrupted network performance
• Wi-Fi 6 (802.11ax) for faster speeds and multi-device support
• Quad-Core Qualcomm Processor for reliable, low-latency operation
• Built-in 3.5″ IPS LCD for real-time system and network monitoring
• 4× Gigabit Ethernet Ports for wired LAN aggregation and backup
• Long-Life 84Wh Battery supporting up to 6–8 hours of operation
• Web & API Management for remote monitoring and system integration
• Portable & Rugged Design ideal for mobile and field deployments


Features:

• Multi-SIM bonding
• Automatic load balancing
• Network backup & failover

Wireless Connectivity

• Wi-Fi Standard: Wi-Fi 6 (802.11ax) Dual-Band
• 2.4GHz: Up to 600 Mbps
• 5.8GHz: Up to 1200 Mbps


Wired Networking

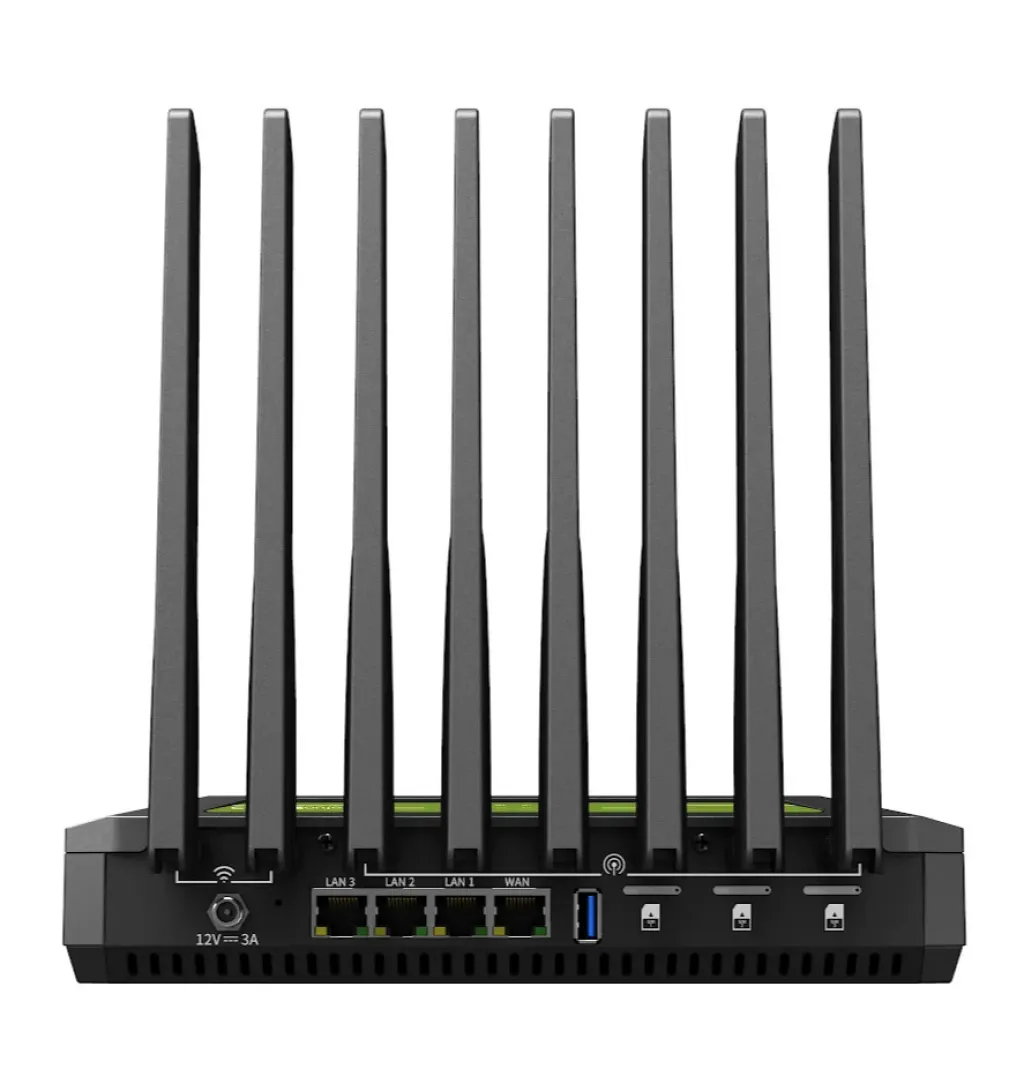

• Ports: 4 × RJ45 Gigabit Ethernet
• Total Bandwidth: Up to 6.25 Gbps

Display & Monitoring

• Screen: 3.5-inch SPI IPS Color LCD
• Displays, Battery status, Network speed, Server address,
• Wi-Fi status and System working status


Management & Control

• Web-based management interface
• HTTP API support for third-party integration
• Remote configuration, monitoring and diagnostics

Power & Battery

• Power Input: DC 12V / 3A
• Power Consumption: 8–15W
• Battery: 8.4V / 10000mAh (84Wh)
• Operating Time: Approx. 6–8 hours
