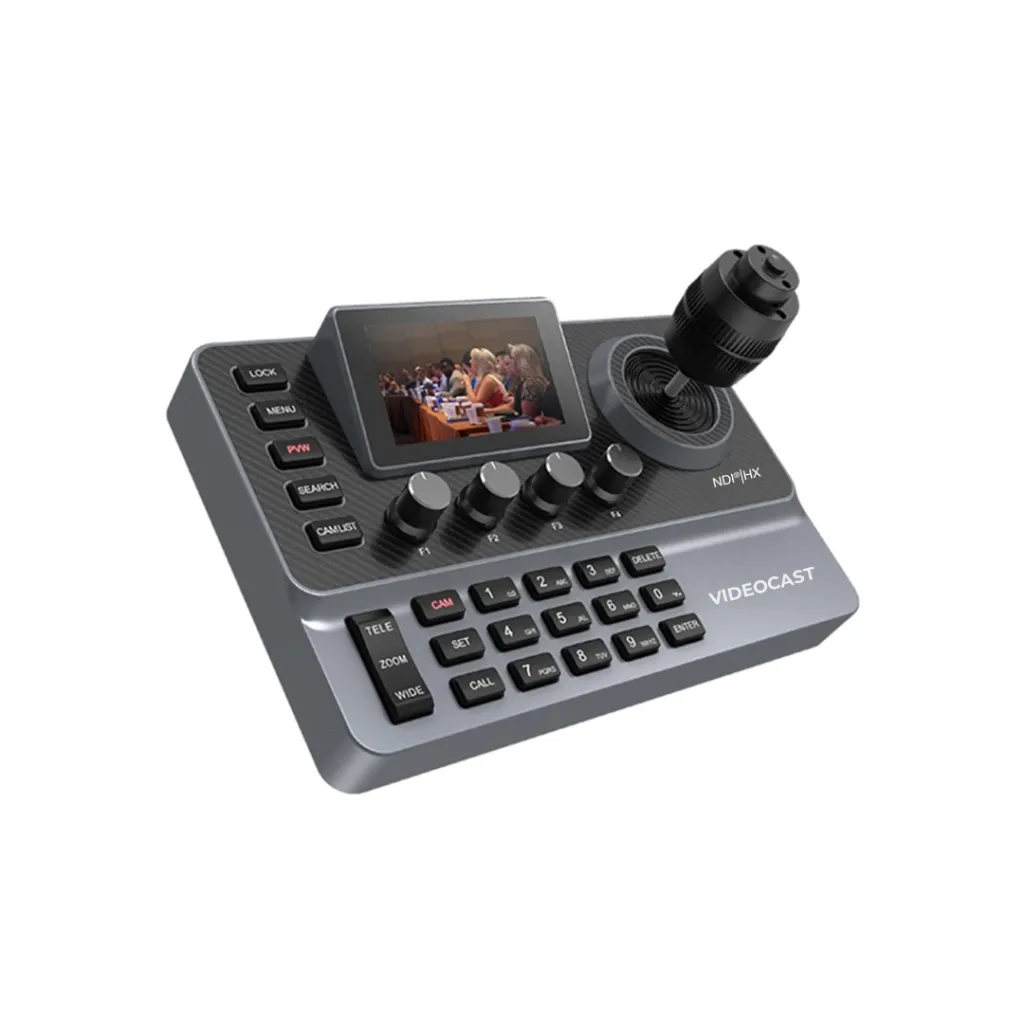

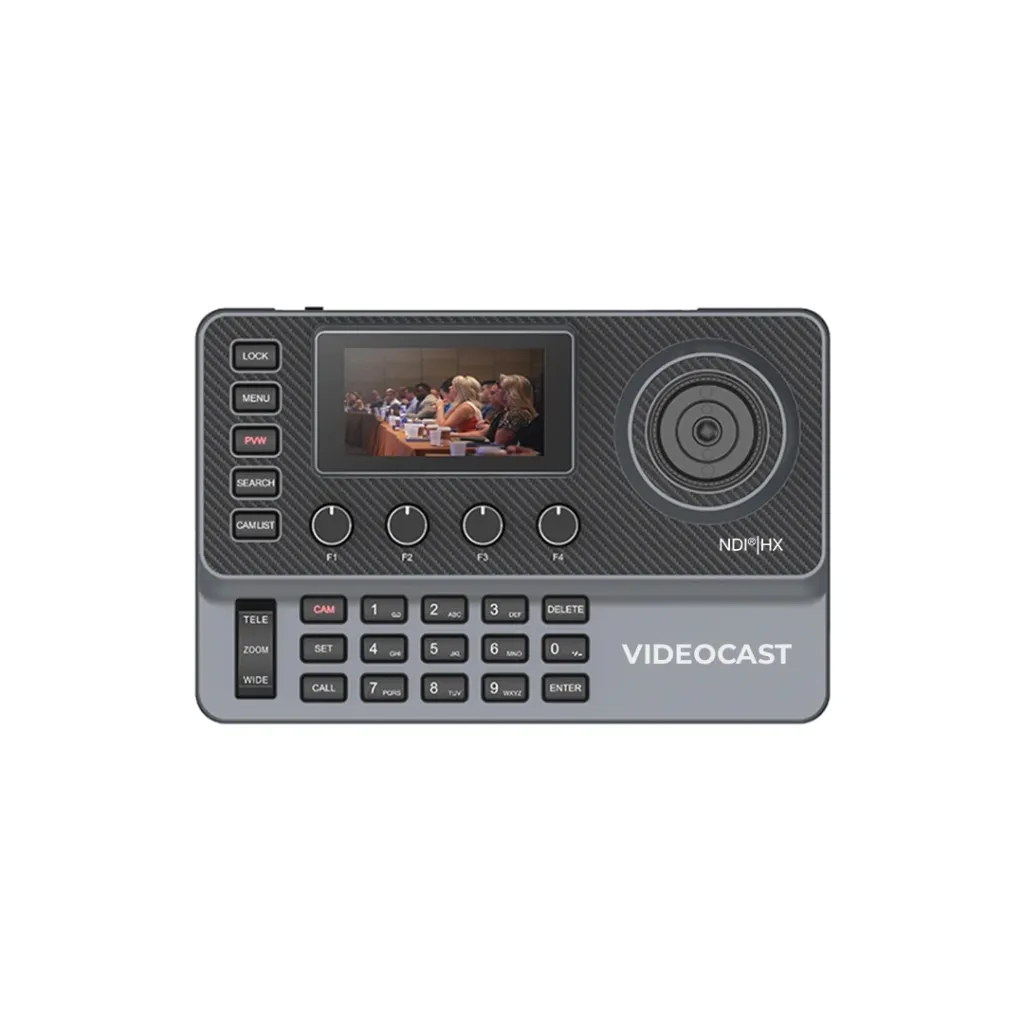

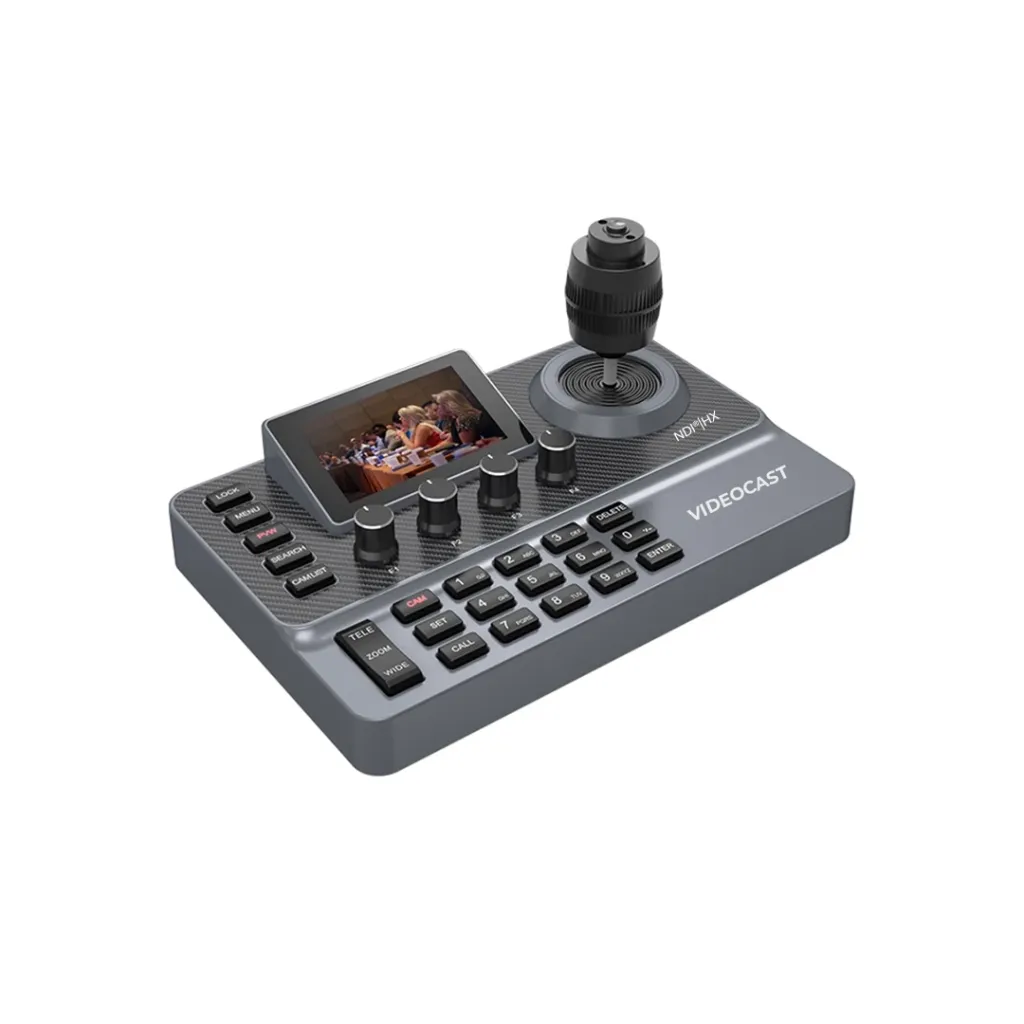

VIDEOCAST VC-C101 NDI MULTIFUNCTIONAL PTZ CAMERA CONTROLLER

The Videocast VC-C101 is a professional multi-protocol PTZ camera controller designed for smooth, precise control in live production and streaming environments. With a 4D joystick, real-time NDI preview and broad protocol support, it delivers reliable performance for studios, churches, corporate events and broadcast setups.

Key features:

• Precision 4D Joystick with ergonomic zoom control
• 3” color screen with real-time preview (NDI | HX2 & RTSP)
• Supports VISCA, VISCA over IP, VISCA TCP, PELCO P/D, ONVIF and NDI
• Customisable F1–F4 knobs for quick function access
• Direct control of focus, exposure, white balance and zoom
• Max Preset Position: 255
• Lock Button: Support one-key lock function
• Max. Control Quantity: 1000
• Silicone backlit keyboard (white & red lighting)
• RS422/RS485 serial port and RJ45 network interface
• PoE (Power over Ethernet) support

Technical Specifications:

Control Interface

• 4D joystick (Pan / Tilt / Zoom / Focus)
• 3 programmable control knobs
• 4 customizable function knobs (F1–F4)

Display

• 3-inch color LCD
• Real-time preview via NDI|HX2 and RTSP

Supported Protocols

SCA, VISCA over IP, VISCA TCP, PELCO P/D, ONVIF and NDi

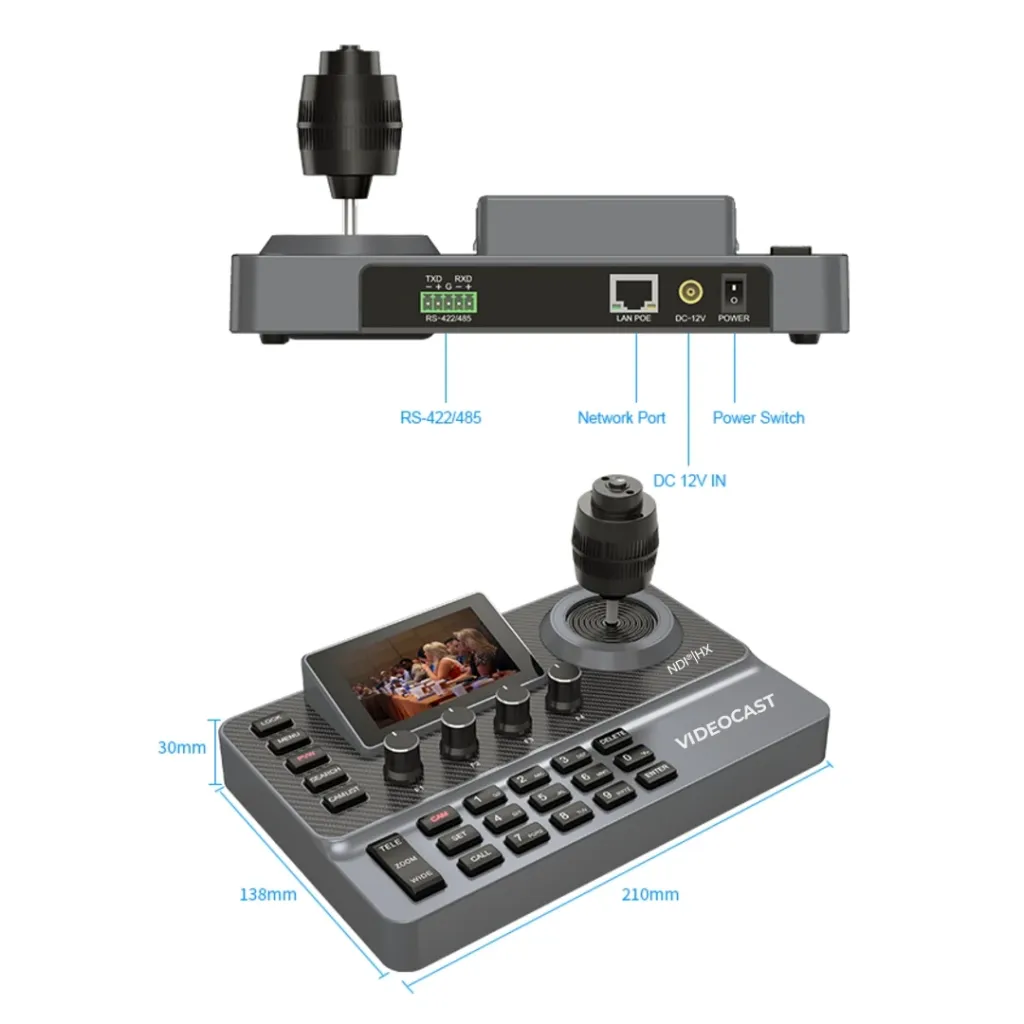

Connectivity

RJ45 Network Port, RS422 / RS485 Serial Port, PoE Supported

Keyboard

Silicone backlit buttons (white & red)

Applications:

• Live streaming
• Broadcast production
• Church streaming
• Corporate AV
• Education & government events
