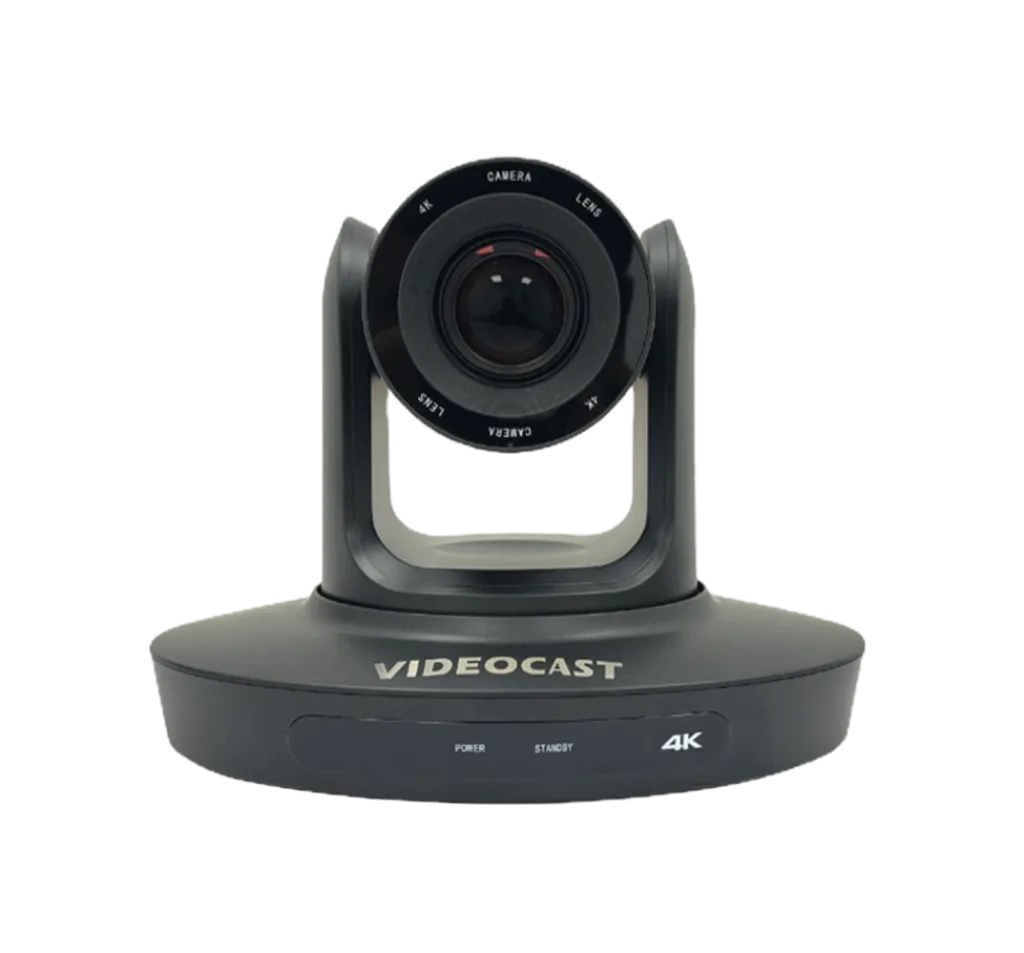

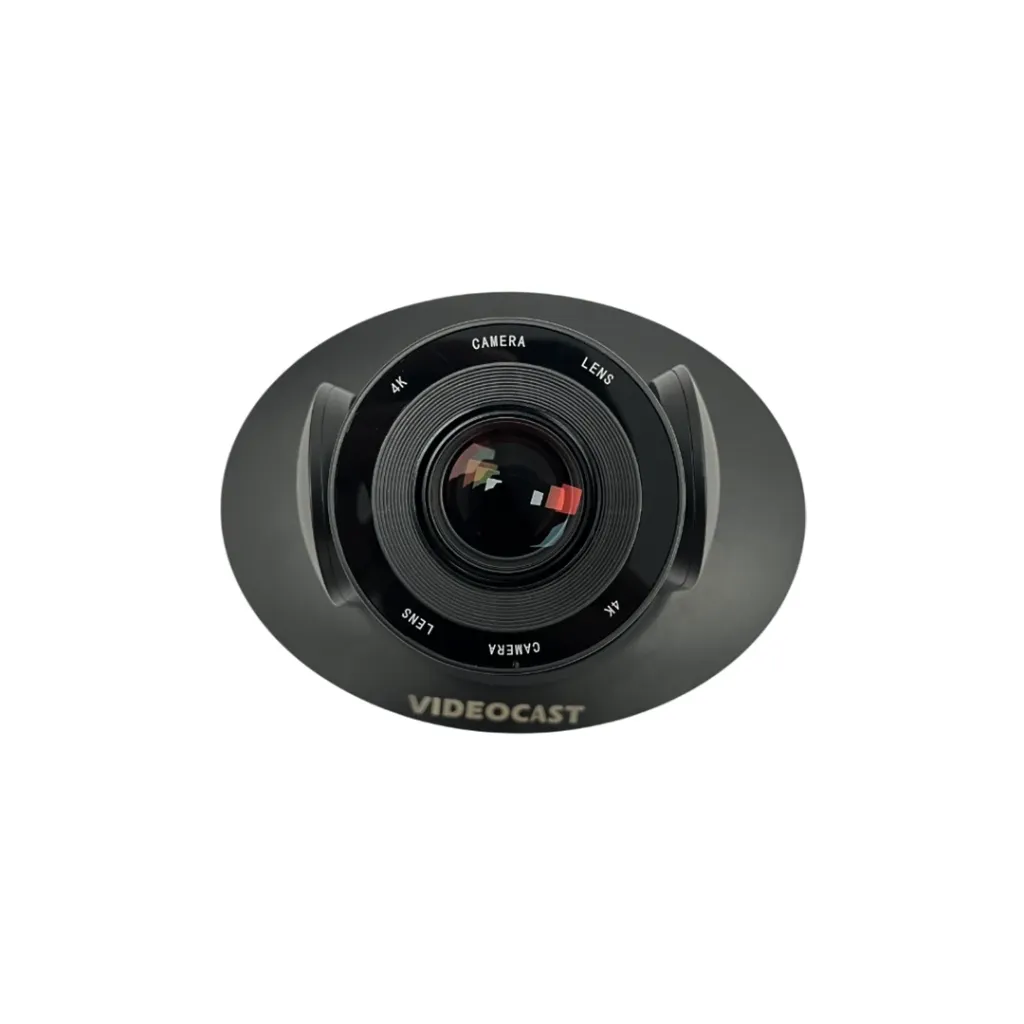

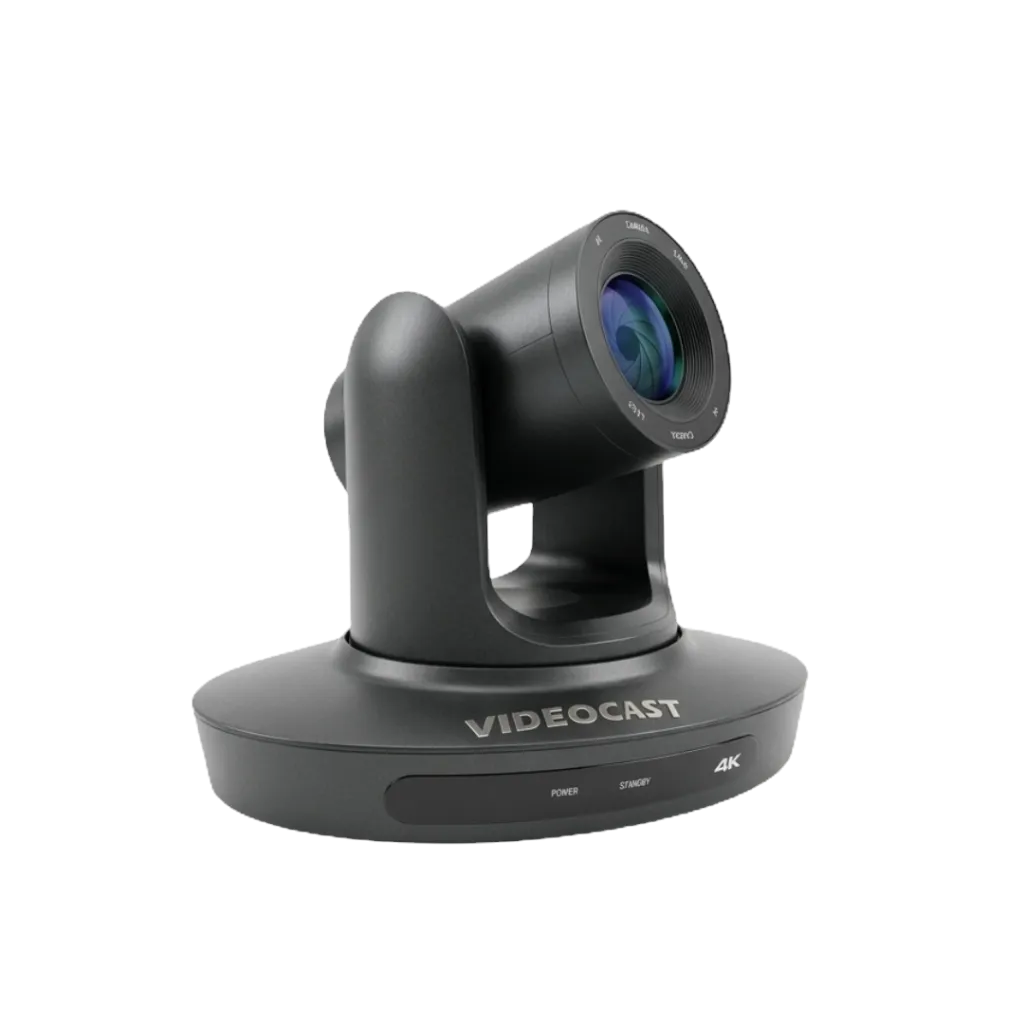

VIDEOCAST VC90A 10X 4K AI Tracking PTZ Camera for Online Teaching, Worship etc

The VIDEOCAST VC90A is a versatile 4K PTZ (Pan, Tilt, Zoom) camera designed to elevate the video experience for online teaching, conferences, worship services, and other professional environments.

With advanced AI tracking and a 10x optical zoom lens, the VC90A ensures clear, smooth, and dynamic video capture, providing a powerful tool for any broadcast or live-streaming setup. Whether you’re streaming from a large auditorium or a small classroom, the VC90A adapts to your needs with its superior resolution, rich connectivity, and flexible mounting options.

Key Features:

• 4K Ultra HD Resolution:
  Equipped with a SONY 1/2.8” Progressive CMOS sensor and 8.50 Megapixels, the VC90A delivers crisp, detailed video with a maximum resolution of 3840x2160 at up to 30fps. Perfect for capturing every detail, even in fast-moving environments.

• 10x Optical Zoom Lens:
  The 10x optical zoom lens with a 67.8° wide angle ensures clear and sharp visuals, whether you're zooming in on a speaker or capturing a large group. Perfect for conferences, meetings, or large worship settings.

• Multiple Connectivity Options:
  The VC90A supports USB 3.0, HDMI, and IP interfaces, allowing for seamless integration into any video setup. Output ultra-high-definition 4K and 1080P HD video through multiple ports for both synchronous and high-quality video transmission.

• Low Light Performance:
  Featuring an ultra-high signal-to-noise ratio CMOS sensor, the VC90A excels in low-light conditions. With 2D & 3D noise reduction, it ensures clear images even in dim environments, making it ideal for worship services, webinars, and night-time events.

• AI Tracking & Auto Framing:
  The camera’s AI-powered tracking technology automatically follows the speaker, adjusting the frame to keep them centered in the shot. This dynamic feature is especially beneficial for online teaching, conferences, and other applications where subjects move around.

• Advanced Video Compression & Protocols:
  Supporting multiple video compression formats including YUY2, H.265, MJPG, and H.264, the VC90A ensures efficient data transmission without sacrificing video quality. It also supports multiple network protocols such as ONVIF, SRT, RTSP, and RTMP, enabling flexible integration with any network setup.

• IR Remote Control & Transparent Transmission:
  Beyond its own infrared remote control capabilities, the VC90A can receive IR signals from other devices, transmitting them to the video conference terminal through the VISCA port for greater control and ease of use.

• Flexible Mounting Options:
  Whether you prefer wall mounting, desktop, or ceiling installation, the VC90A offers various mounting methods to accommodate different room layouts and space constraints.

• PoE (Power over Ethernet):
  This device also supports Power over Ethernet (PoE), allowing for simplified installation by transmitting both power and data over a single Ethernet cable, eliminating the need for separate power adapters and reducing cable clutter.

Technical Specifications:

• Resolution:
  4K (3840 x 2160) at 30fps 1080P (1920 x 1080) at 60fps

• Image Sensor:
  SONY 1/2.8” Progressive CMOS, 8.50 Megapixels

• Optical Zoom:
  10x optical zoom, 67.8° wide-angle

• Interfaces:

  • USB 3.0
  • HDMI
  • IP (Network Output)

• Compression Formats:
  YUY2, H.265, MJPG, H.264

• Network Protocols:
  ONVIF, SRT, RTSP, RTMP

• Control Protocols:
  VISCA (VISCA Over IP), PELCO P/D

• AI Functions:
  AI tracking and auto-framing

• Low Light Performance:

  45dB signal-to-noise ratio

• Mounting Methods:
  Wall, desktop, ceiling

• Power Supply:
  DC 12V/2A

• Dimensions (WxDxH):
  170 x 190 x 210 mm

• Weight:
  1.2 kg

Applications:

• Online Teaching & E-Learning:
  Capture and stream high-quality video of instructors and classrooms with ease, while the AI tracking ensures students always see the key speaker clearly.

• Video Conferencing & Remote Meetings:
  Enhance virtual collaboration with crystal-clear video and dynamic tracking capabilities, ensuring all participants stay in focus even when moving around.

• Worship Services:
  Ideal for streaming services, the VC90A delivers excellent low-light performance and remote control options, perfect for large auditoriums or smaller intimate services.

• Corporate & Live Events:
  Use the VC90A to broadcast corporate events, webinars, or live conferences with its seamless video compression and professional-grade video output.

• Broadcasting & Content Creation:
  Professional-grade 4K resolution and flexible mounting options make this camera suitable for high-end content creators or broadcasting setups.
