AV Matrix 1×4 SDI Distribution

12,000.00 16,500.00

Model number :SD1141

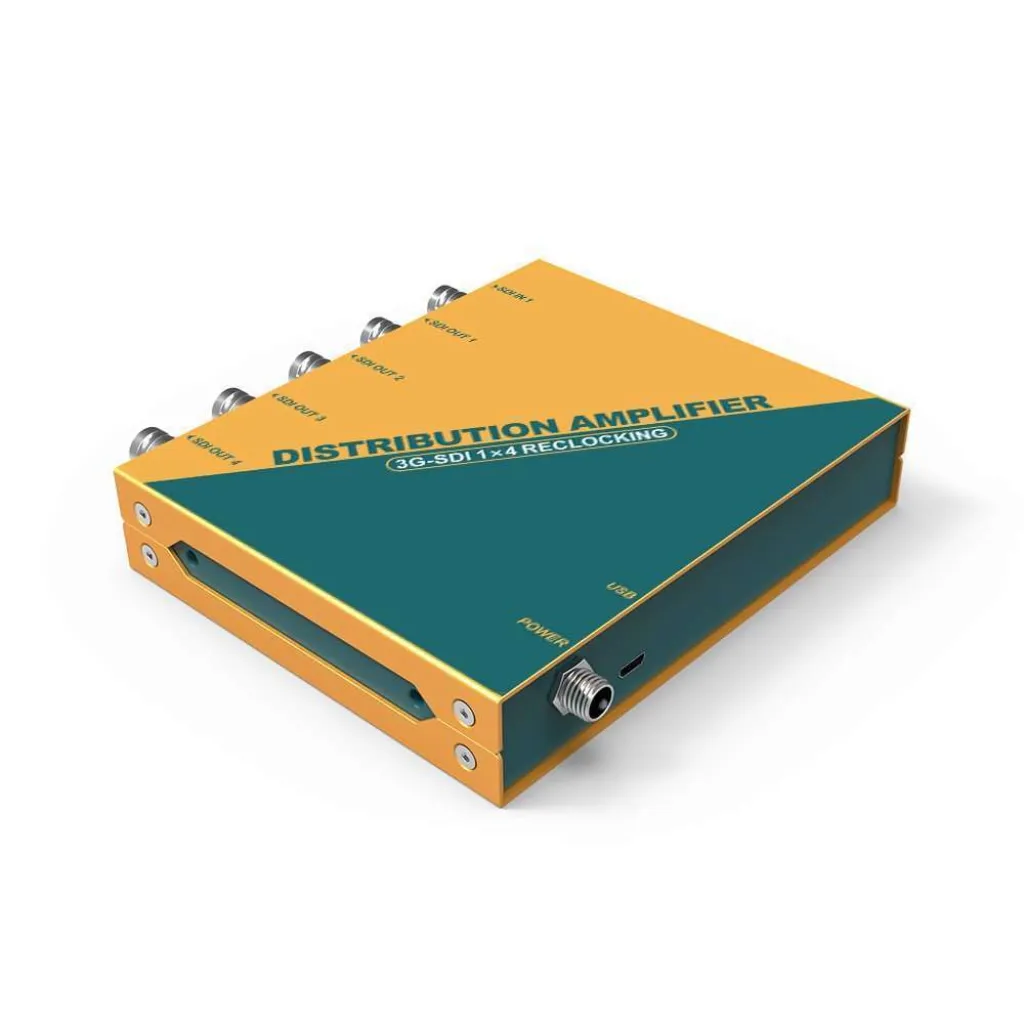

1×4 SDI Reclocking Distribution Amplifier The SD1141 is a miniature, low-cost 1×4 3G HD-SDI/HD-SDI/SDI re-clocking distribution amplifier. Featuring four separately buffered SDI outputs, the SD1141 provides automatic input detection, re-clocking and cable equalization.
Automatically detects SD, HD and 3G-SDI
4 buffered and re-clocked outputs
3G/HD/SD-SDI multi-rate signal processing
Output 2 & 4 support DVB-ASI signal
Automatic cable equalization and signal retiming
Pass all ancillary data and embedded audio

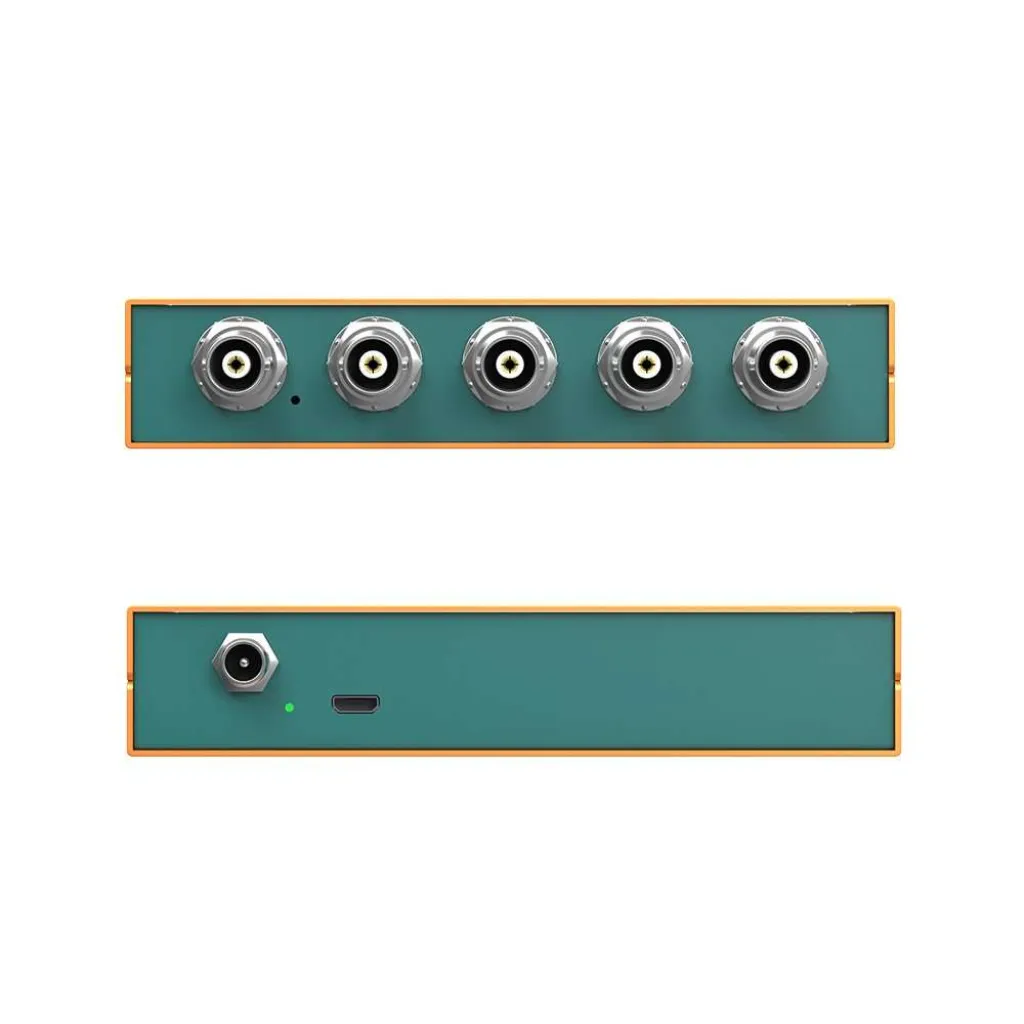

Micro USB and DC power

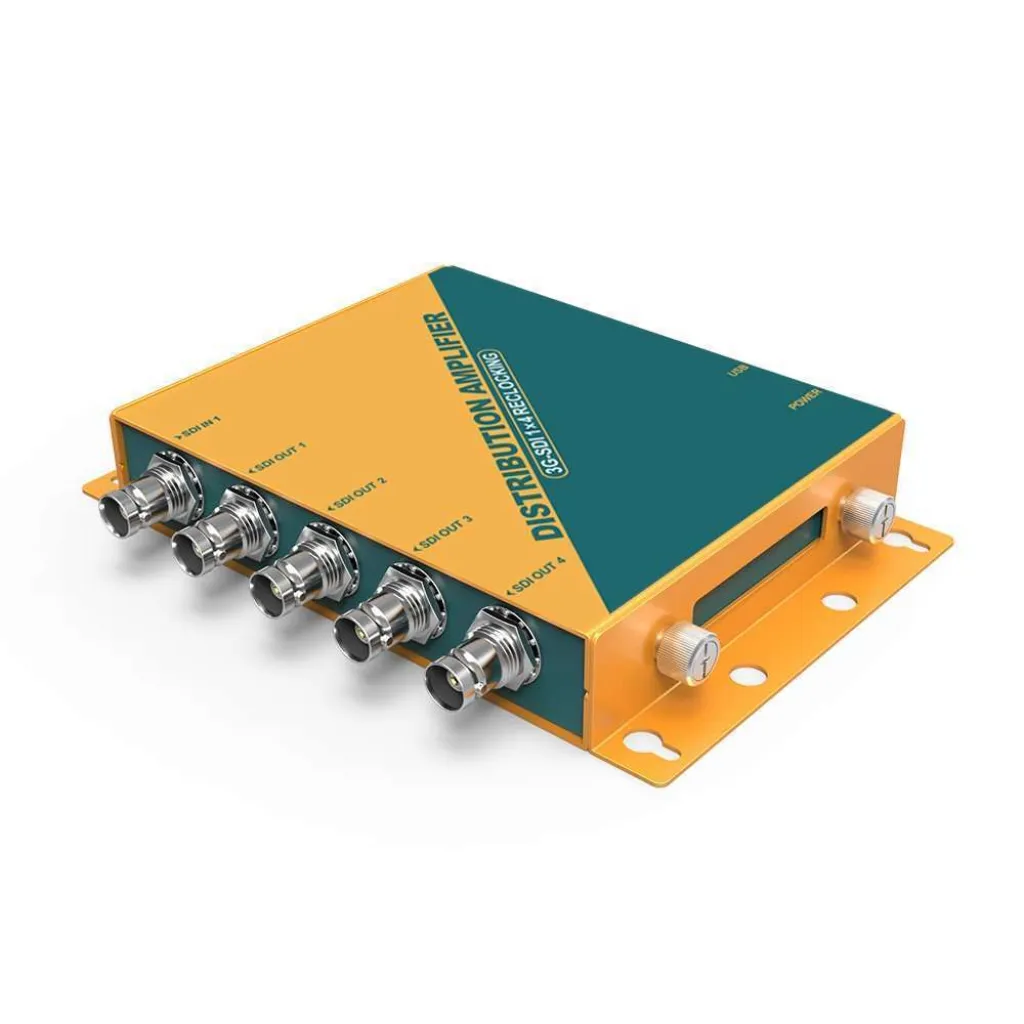

Detachable bracket design for wall mounting

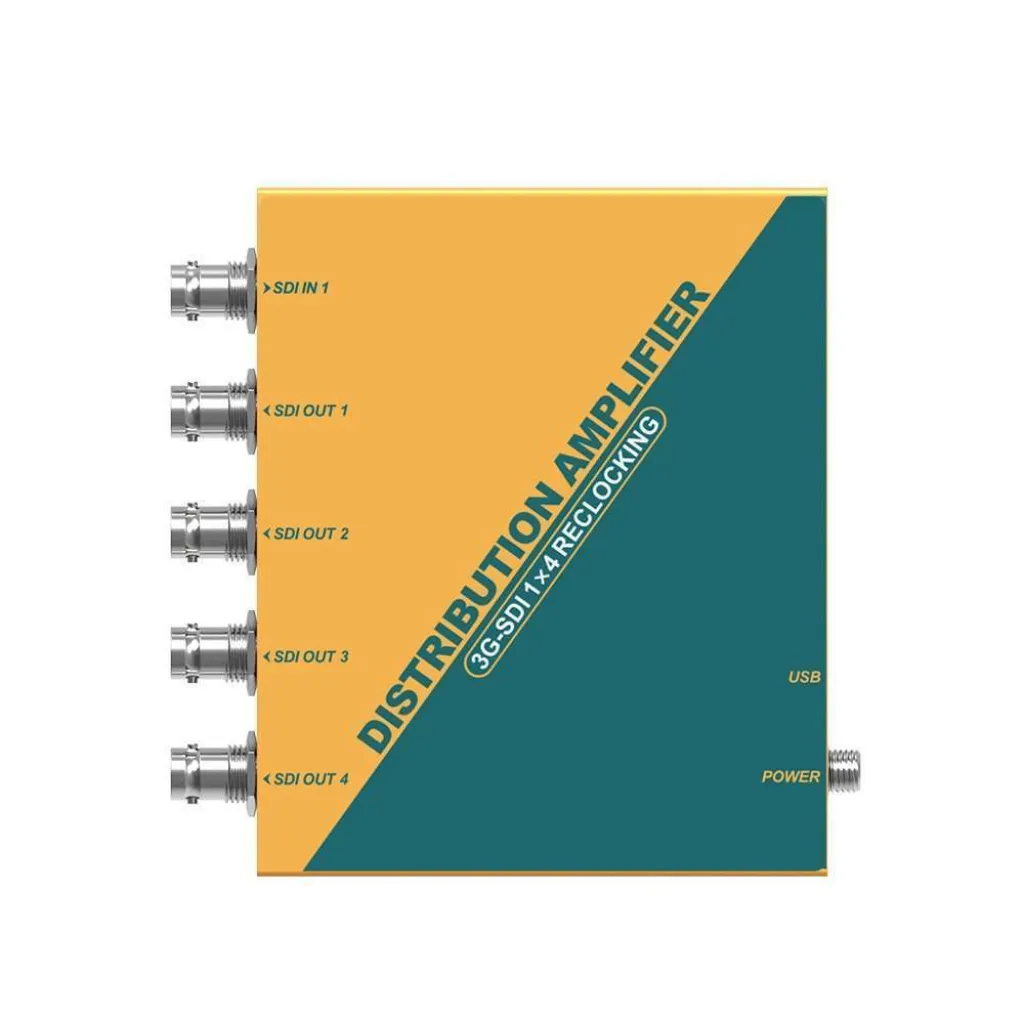

1×4 Distribution
SD1141 is a compact, one input, four output distribution amplifier for SDI and multi-rate SDI video signals up to 1080P 60hz(2.97 Gbps). Output 2 & output 4 support DVB-ASI signal.
120m SDI Re-clocking
SD1141 include built-in SDI re-clocking and equalization. They will regenerate the SDI video input, reduce SDI jitter and improve SDI eye pattern before the signal gets to the converter’s processing. This allows longer cable lengths(3G: 120m, HD: 200m, SD: 400m).
Widespread Application
SD1141 is ideal for use in broadcast and video production facilities, command and control centers, medical imaging facilities., rental and staging, and other applications
SD1141 (SDI Reclocking Distribution Amplifier), USB power adapter × 1, USB cable × 1
