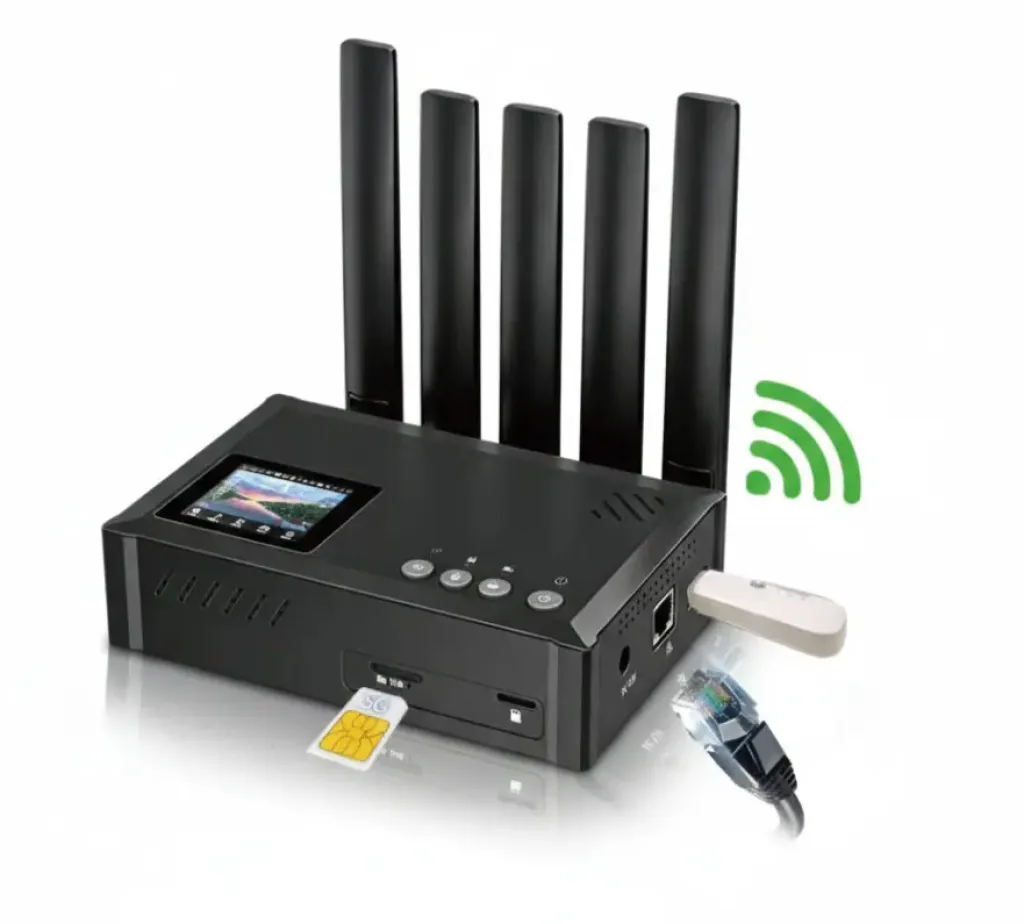

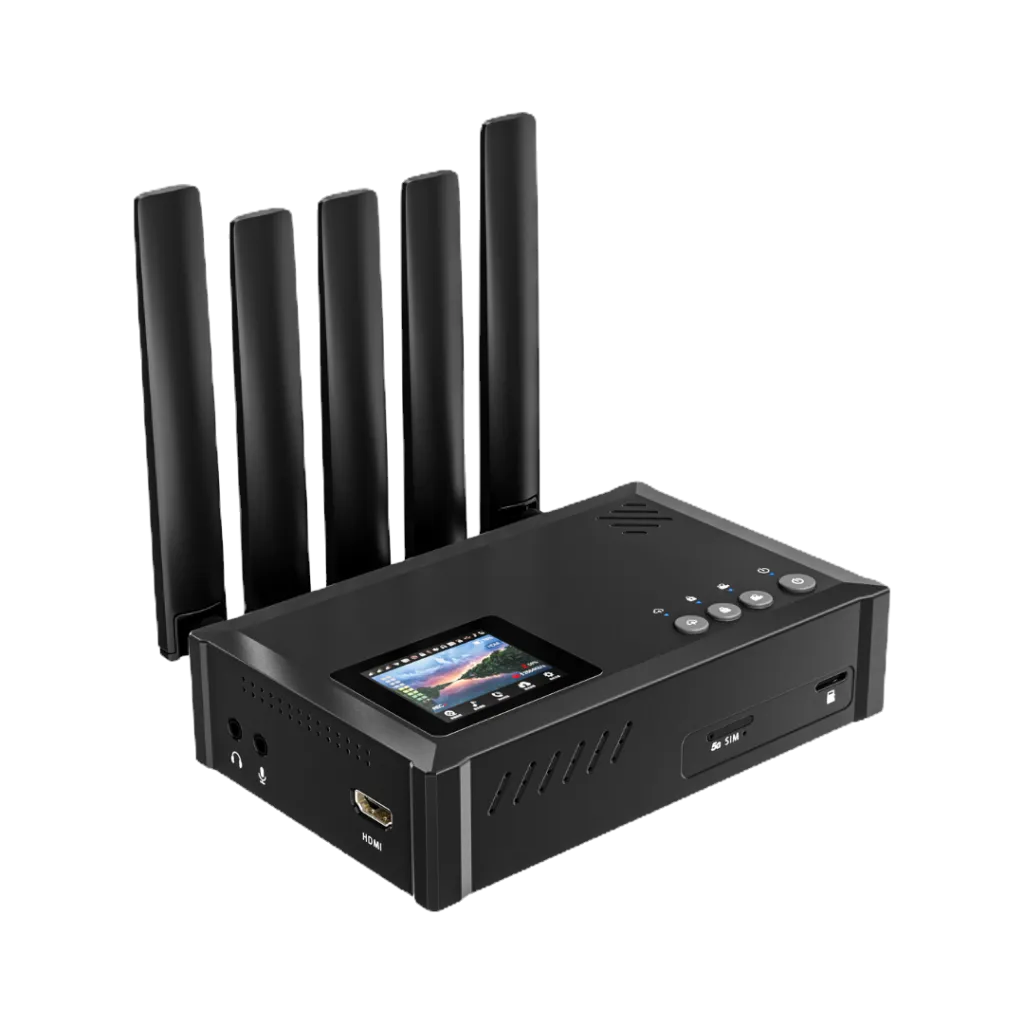

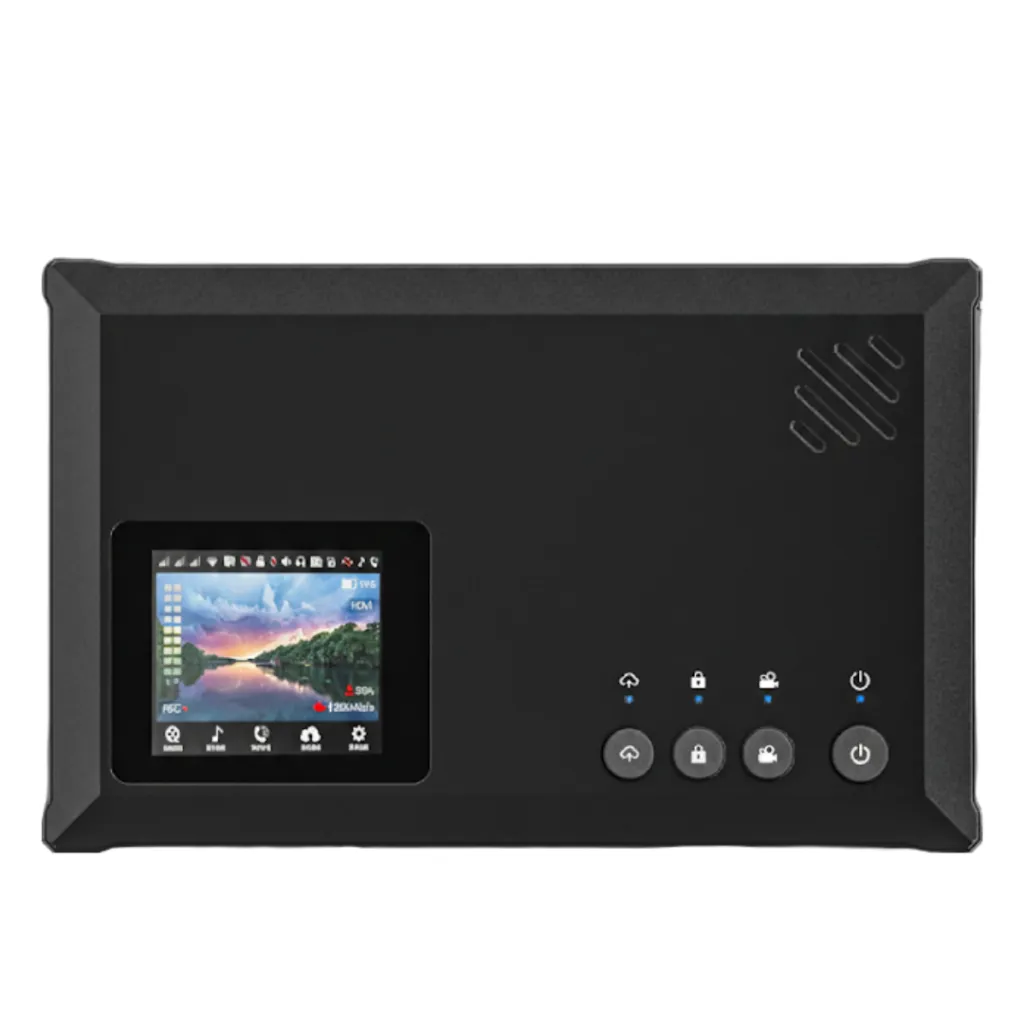

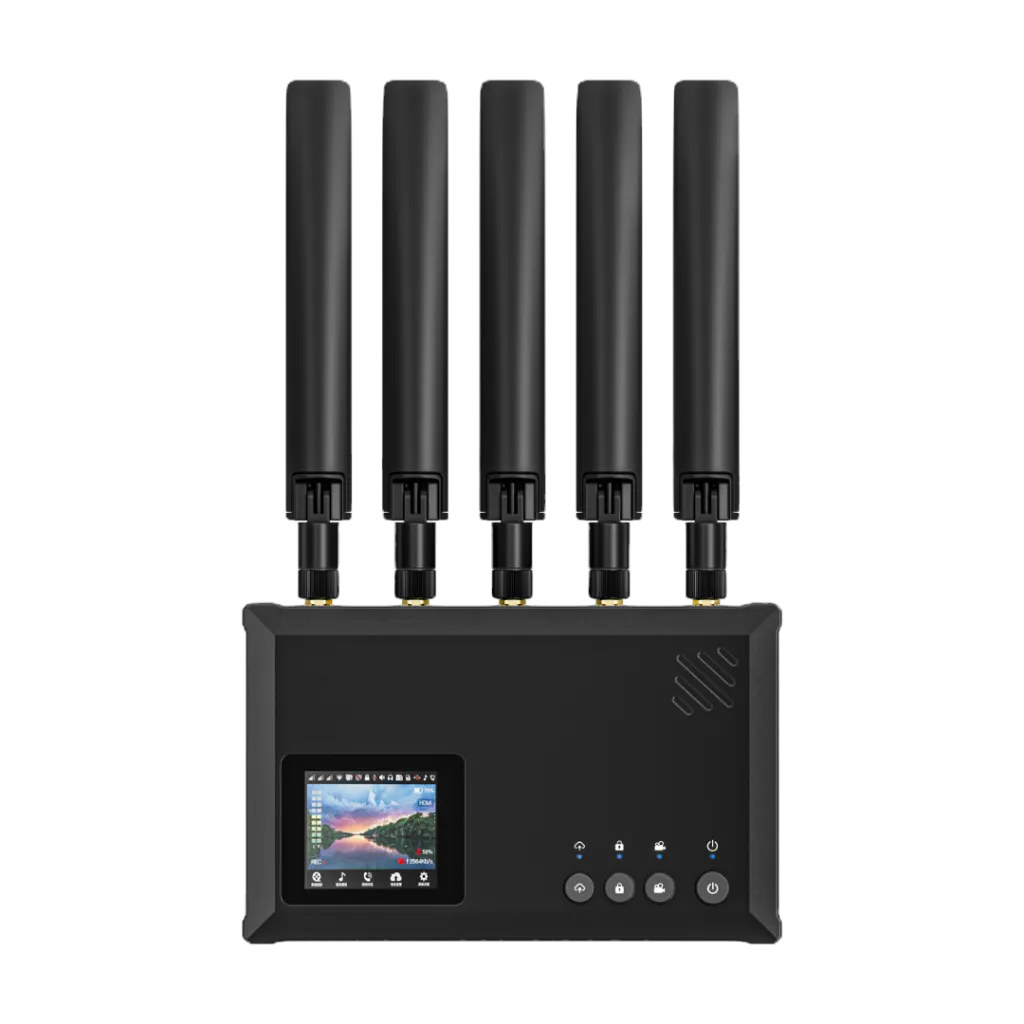

Mine Q8SE 5G HDMI Bonding Video Encoder

Mine-Q8 SE 5G HDMI Bonding Video Encoder is a compact, professional live streaming and  recording device designed for mobile broadcasting, worship services, and live events. It supports HDMI/UVC input, H.264/H.265 encoding, and delivers smooth Full HD 1080p60 streaming with low latency. With built-in 5G, dual-band Wi-Fi, Gigabit Ethernet, and multi-network bonding, it ensures stable transmission anywhere. Supporting RTMP(s), SRT, and RTSP, local TF card recording up to 256GB, and a 2-inch touch screen, it’s a reliable all-in-one solution for high-quality live production.

Key Features

🎥 Professional Video Encoding

• Supports H.264 & H.265 compression for high-quality, low-bitrate streaming

• Encoding profiles: H.265 Main / H.264 High, Main & Baseline

• Maximum 1080p60 live streaming & recording

🔌 Flexible Video Input

• HDMI & UVC input compatibility

• Supports 1080p, 1080i, and 720p input formats with multiple frame rates

🌐 Advanced Network Bonding

• Built-in 5G module for ultra-fast mobile streaming

• Supports 2.4G / 5.8G dual-band Wi-Fi

• Gigabit Ethernet for stable wired connections

• USB support for external 4G dongle & USB network cards

🚀 Multi-Protocol Streaming

• Supports RTMP(s), SRT, and RTSP

• Ideal for cloud platforms, CDN streaming, and private servers

💾 Local Recording

• Records in MP4 format (H.264/H.265 + AAC)

• TF card support up to 256GB

• FAT32 & exFAT file system support

🔊 High-Quality Audio

• AAC audio compression

• 44.1K / 48K sampling rate

• 3.5mm dual-channel audio input & monitoring output

📱 Smart Control & Display

• 2-inch HD touch screen for real-time monitoring

• Compatible with M Live App (Android 5+ & iOS 9+)

🔋 Portable & Reliable

• Built-in 7.4V / 7200mAh battery

• Low power consumption (Max 18W)

• Designed for mobile and outdoor broadcasting

🛠 Rugged Broadcast Design

• Linux operating system for stability

• Operates from 0°C to 40°C

• Lightweight yet durable construction (804g)
